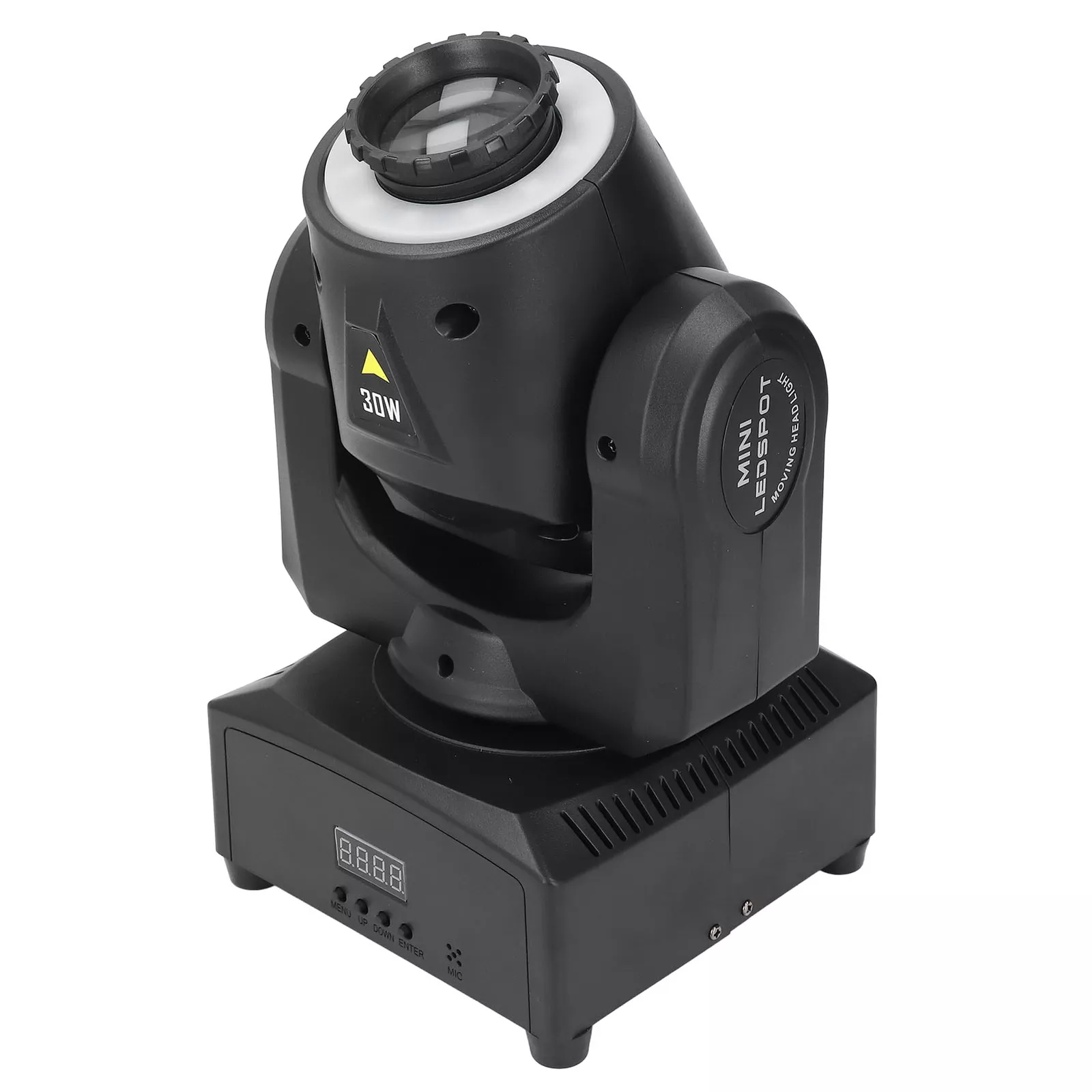

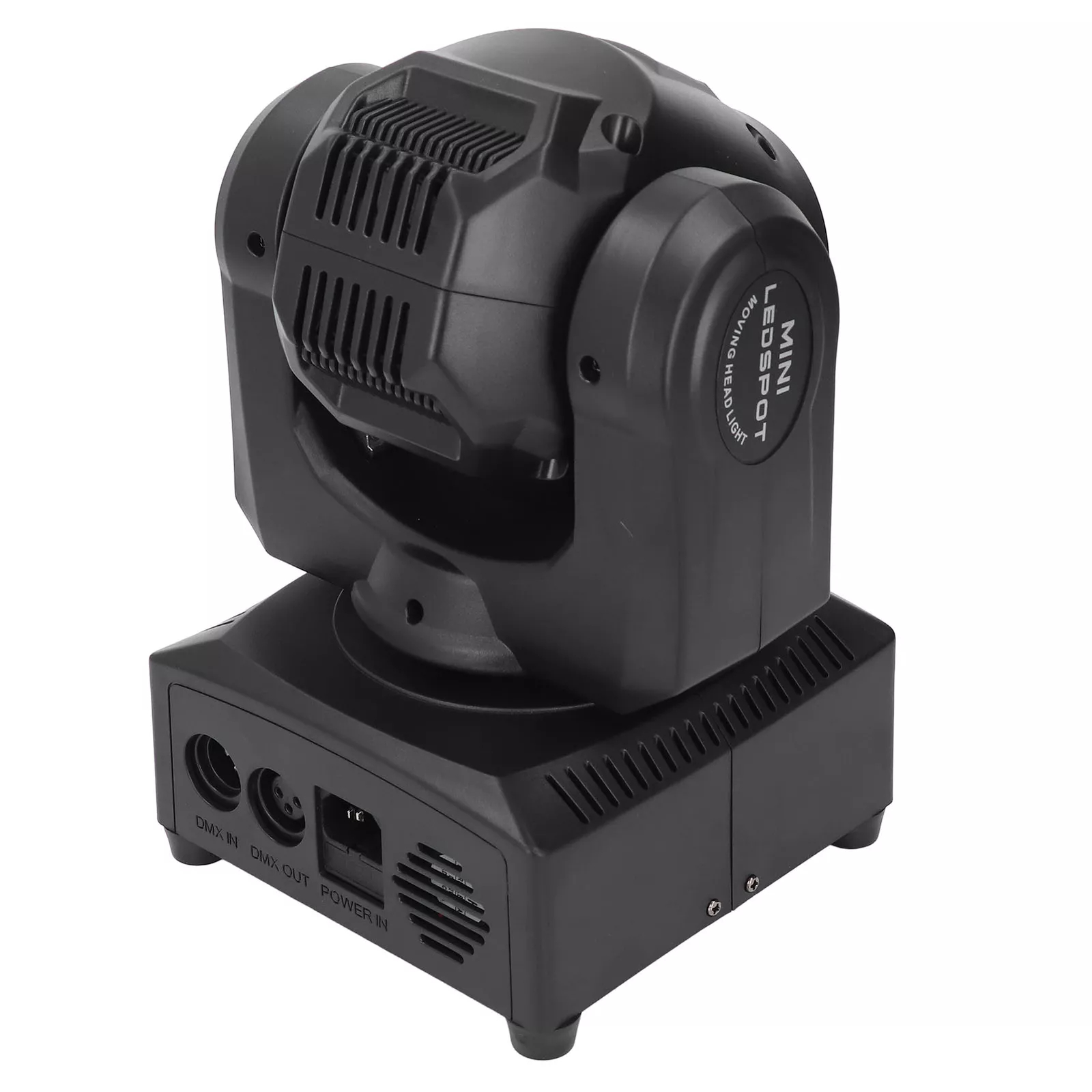

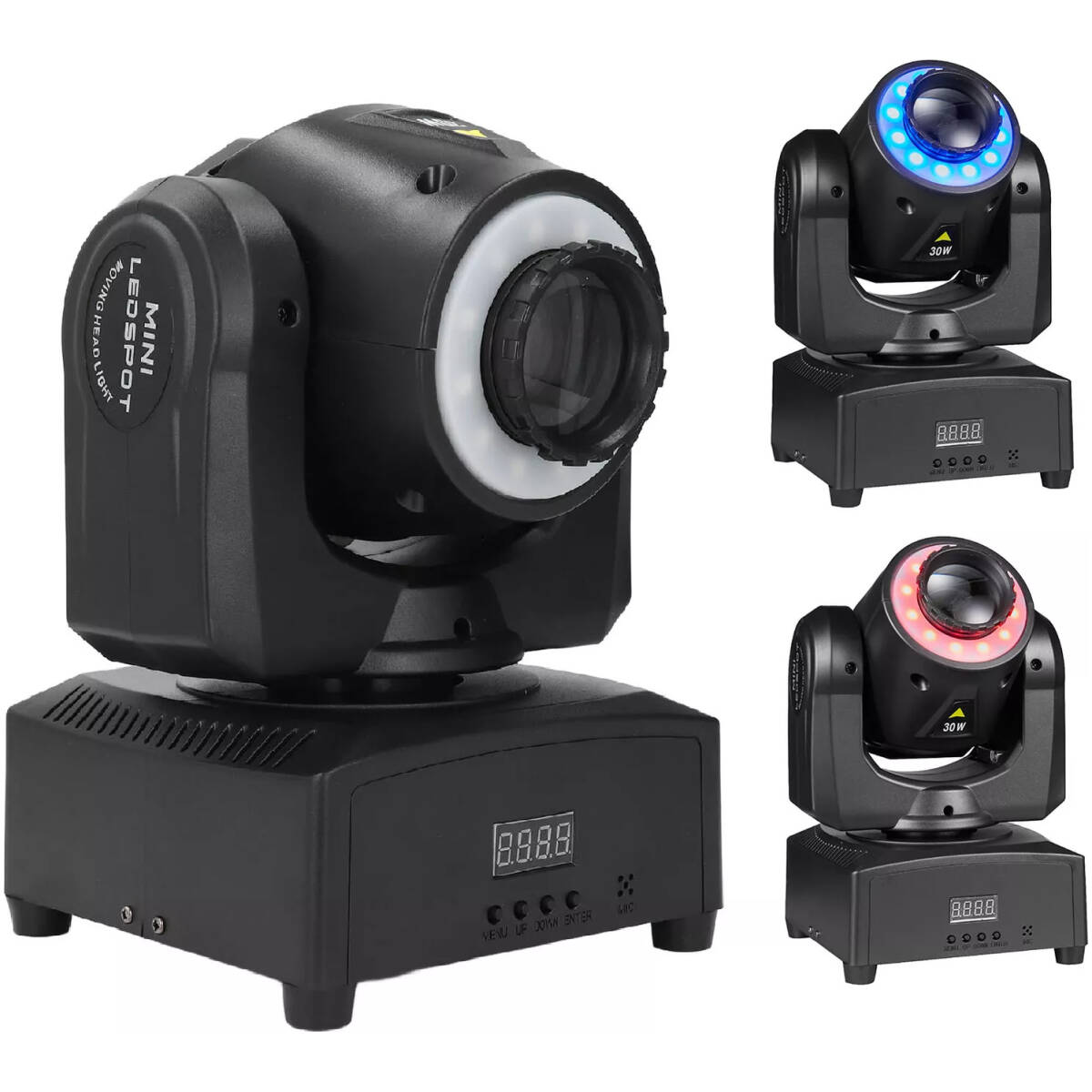

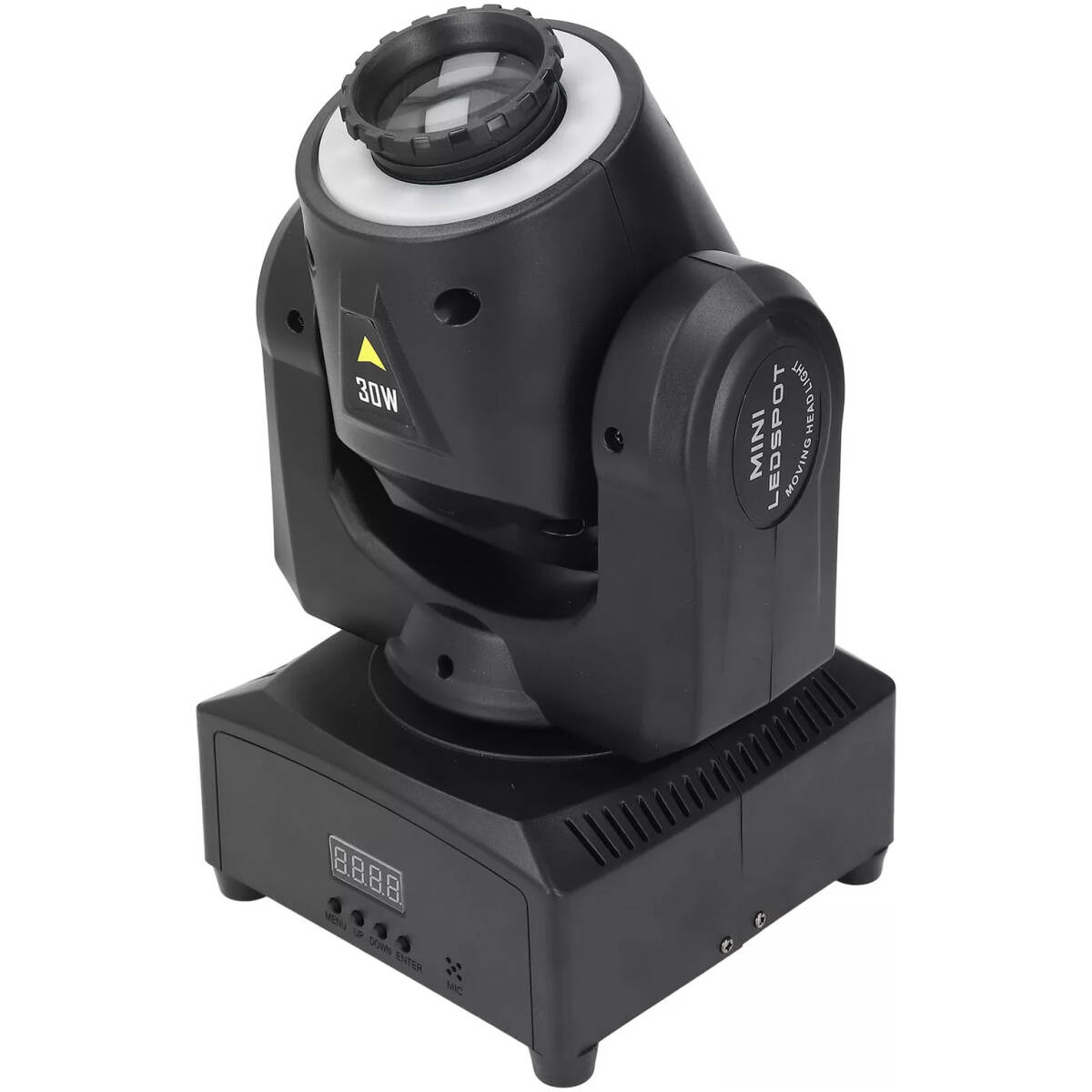

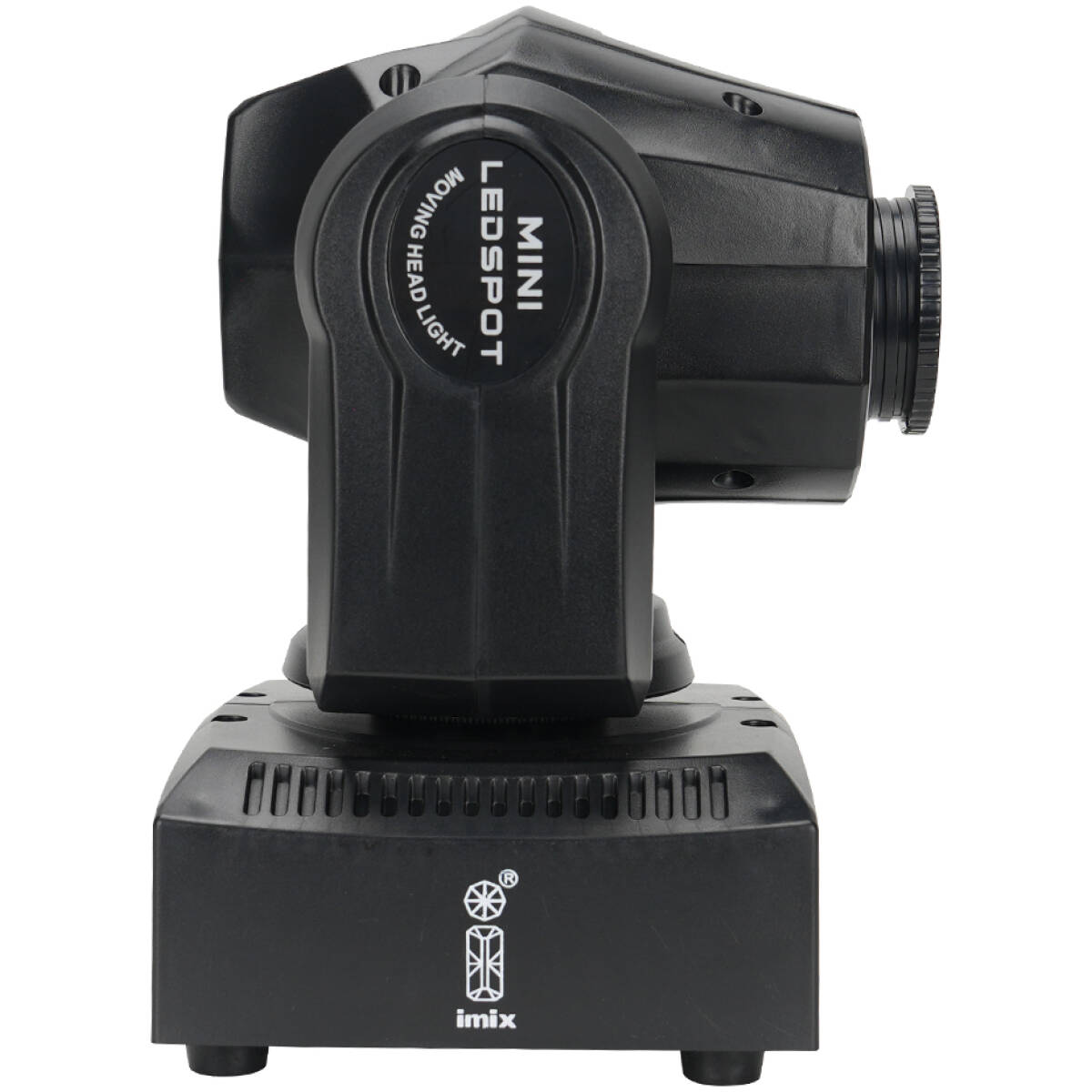

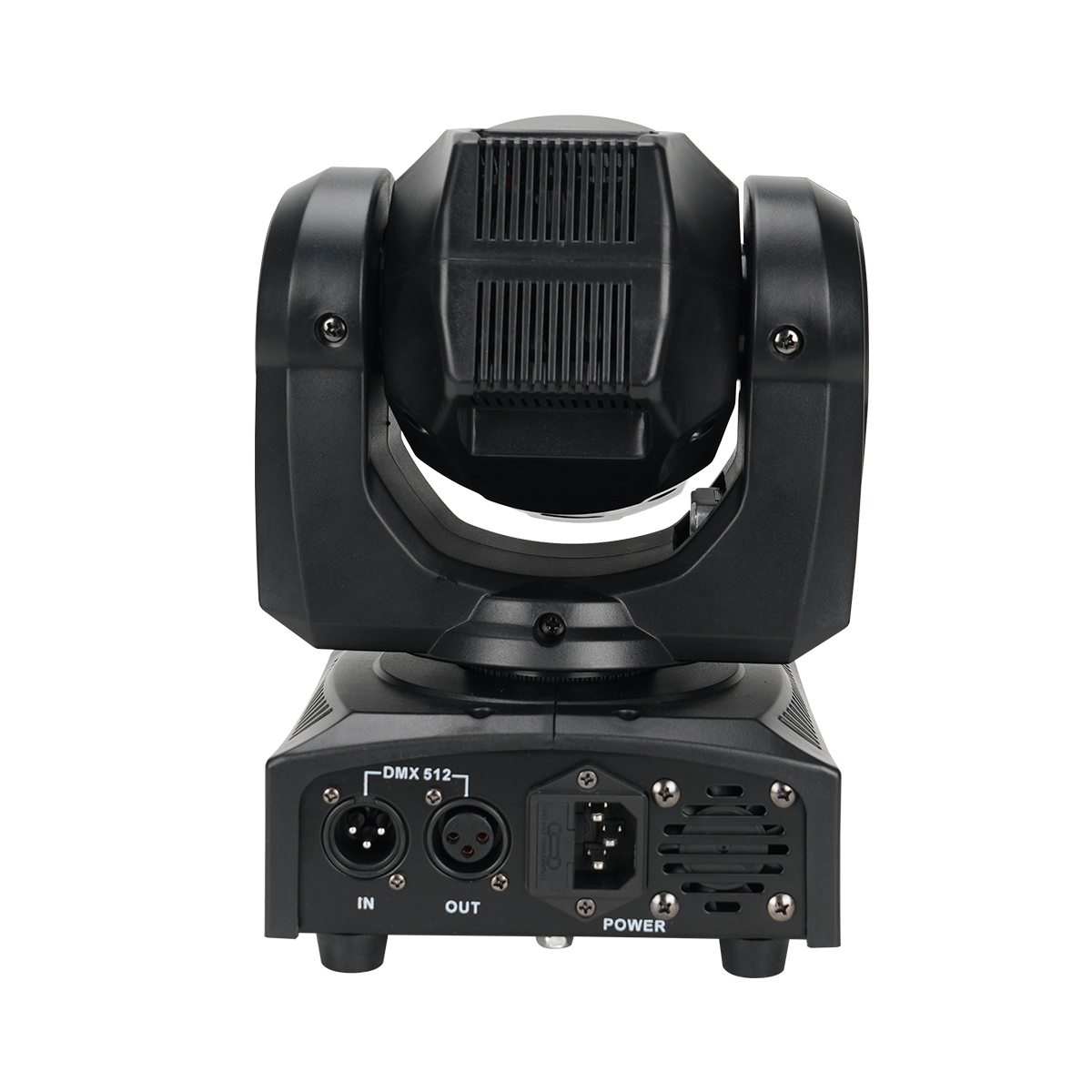

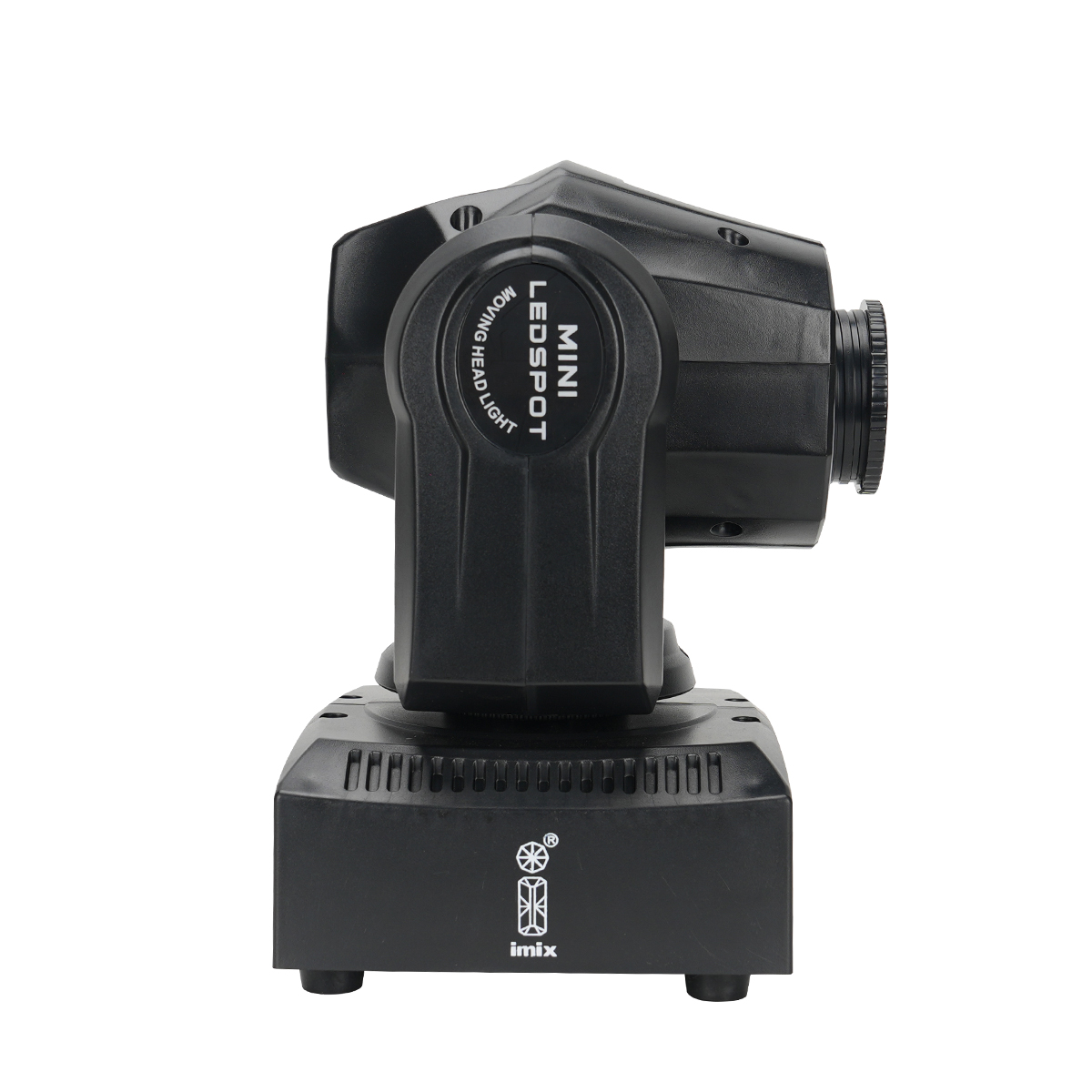

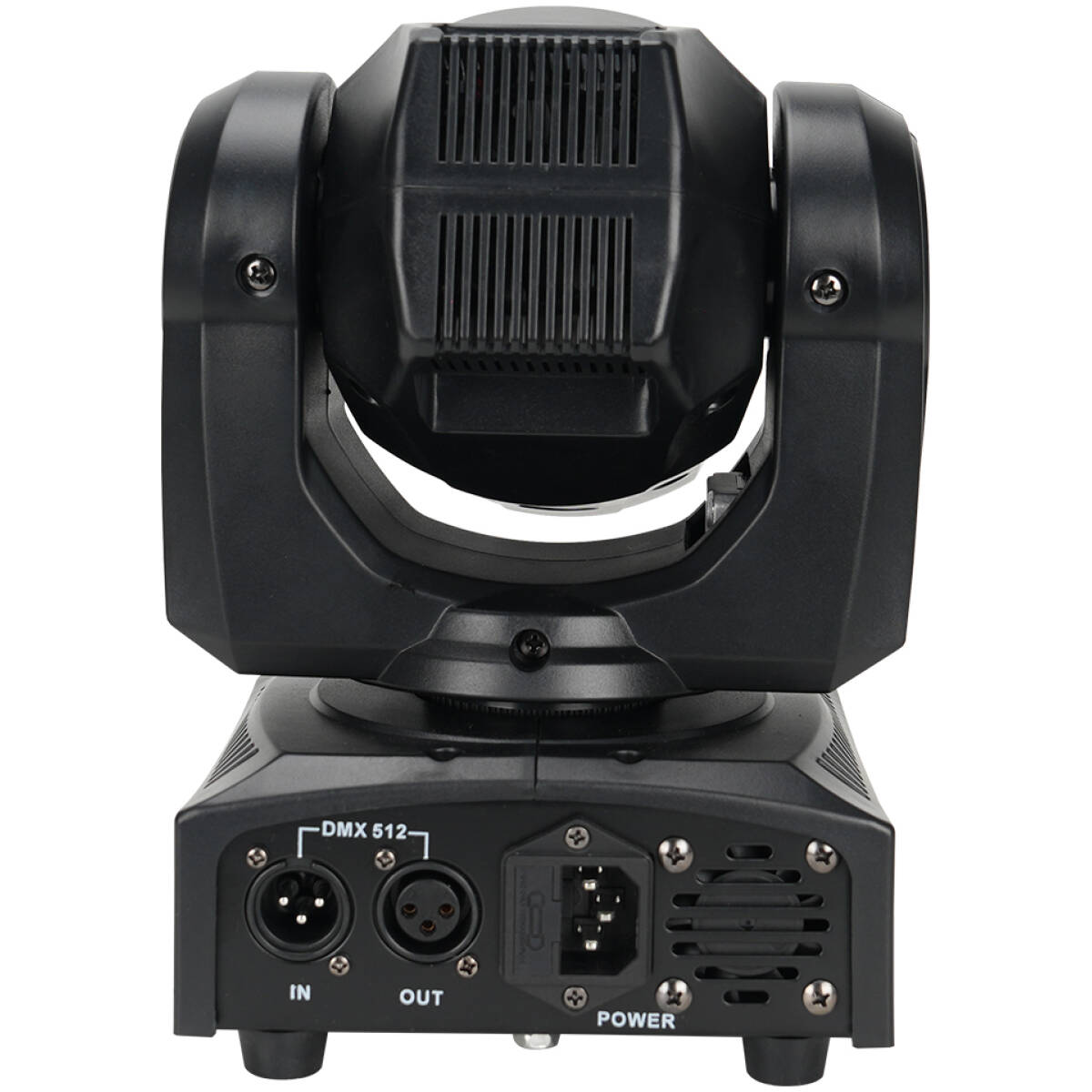

Imix VIPER 30-30W LED Moving Head
R1 650,00
Imix VIPER 30-30W LED Moving Head
| Weight | 2,1 kg |
|---|---|
| Dimensions | 23 × 18 × 29 cm |
| Light Configuration |
1 x LED |
| Light Type |
GOBO |
| Power Rating |
30W |
Additional Information
| Attribute | Value |
|---|---|
| Light Configuration | 1 x LED |
| Light Type | GOBO |
| Power Rating | 30W |
In stock

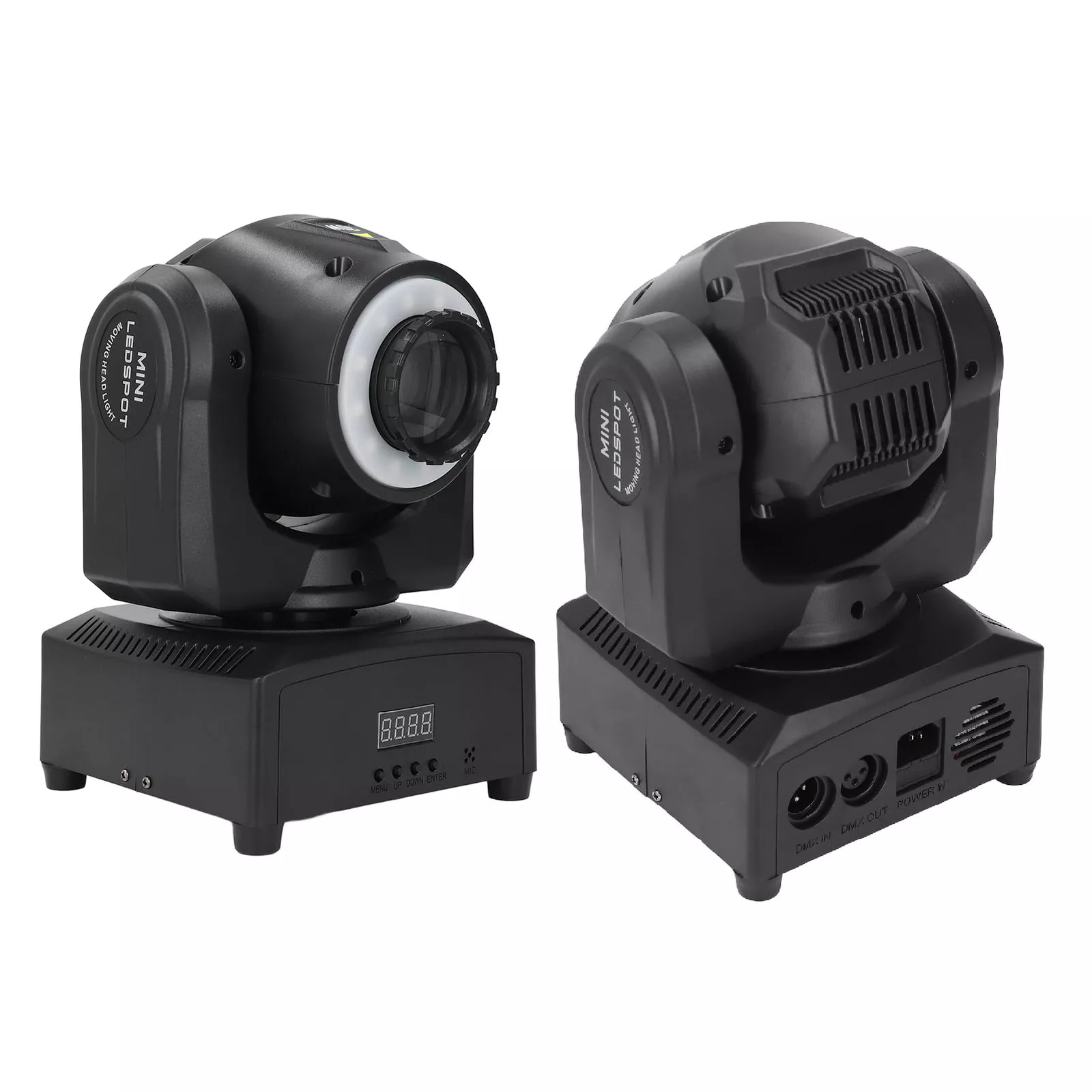

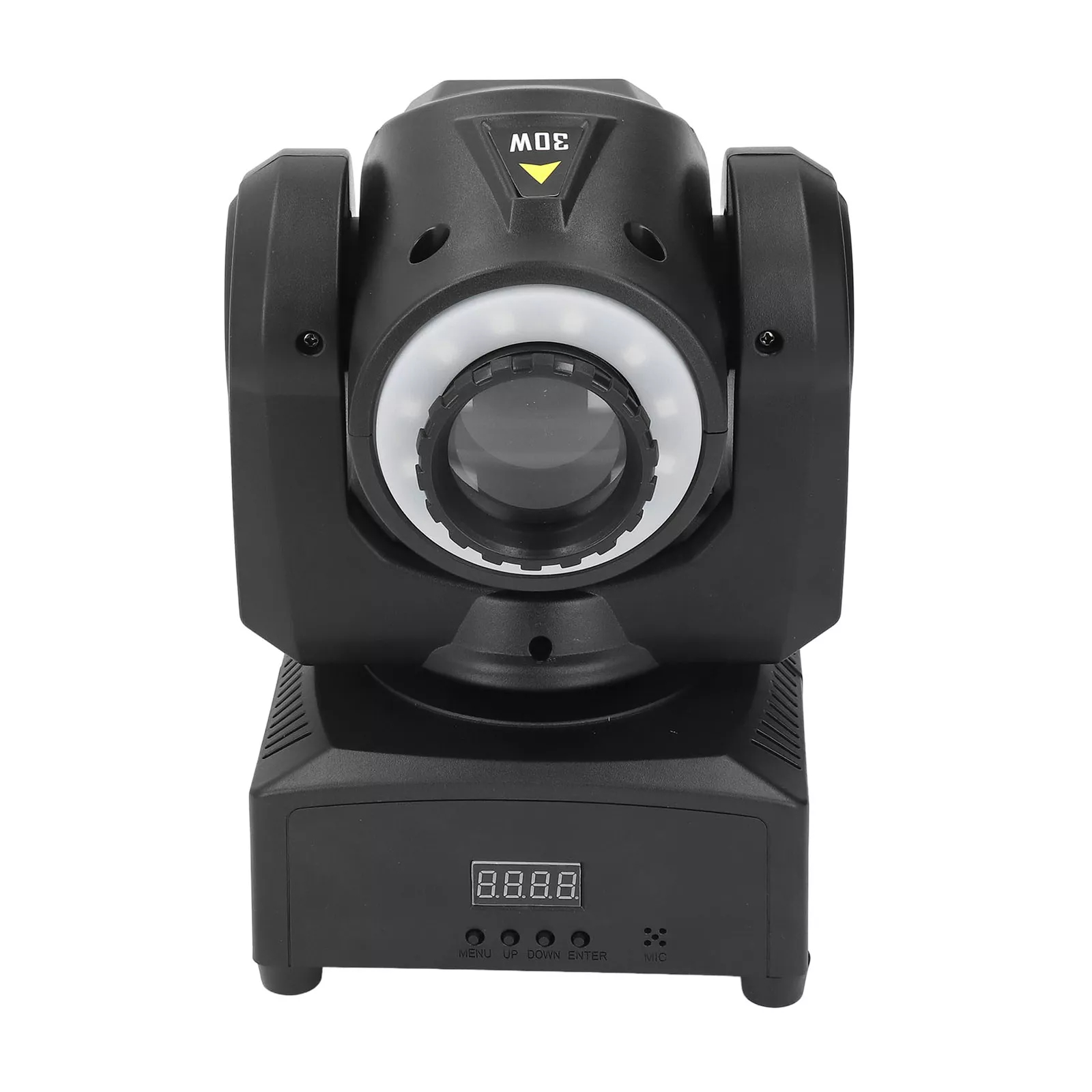

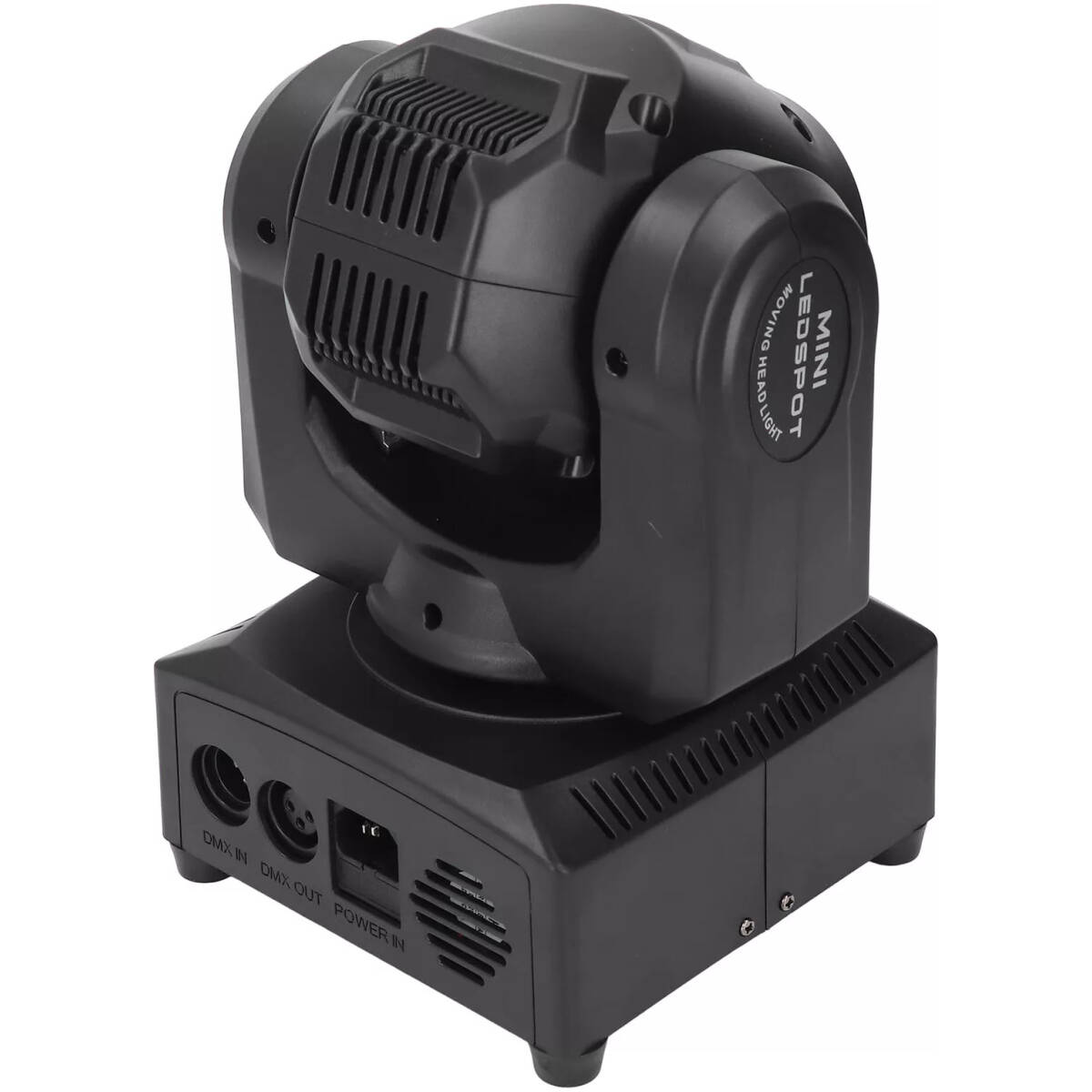

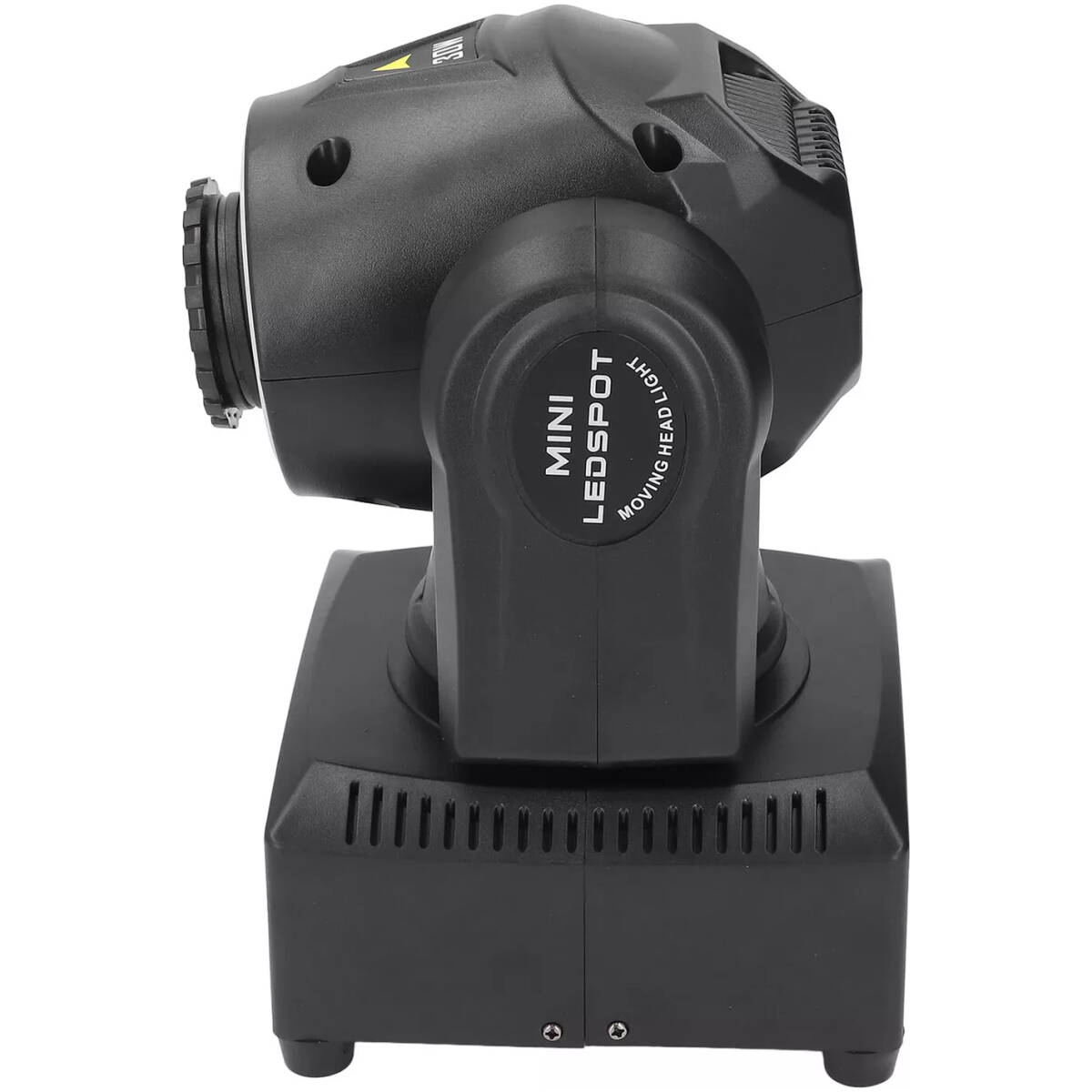

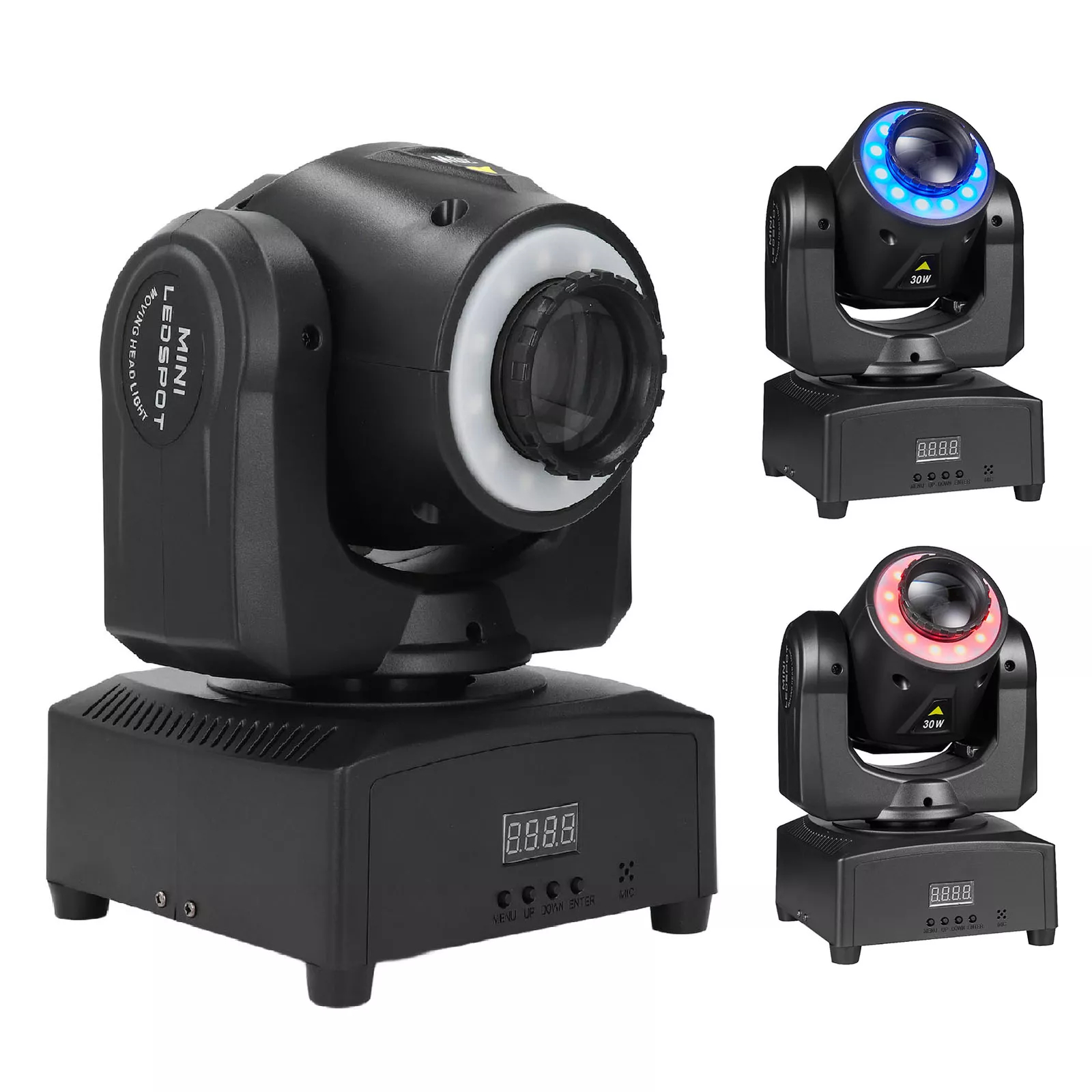

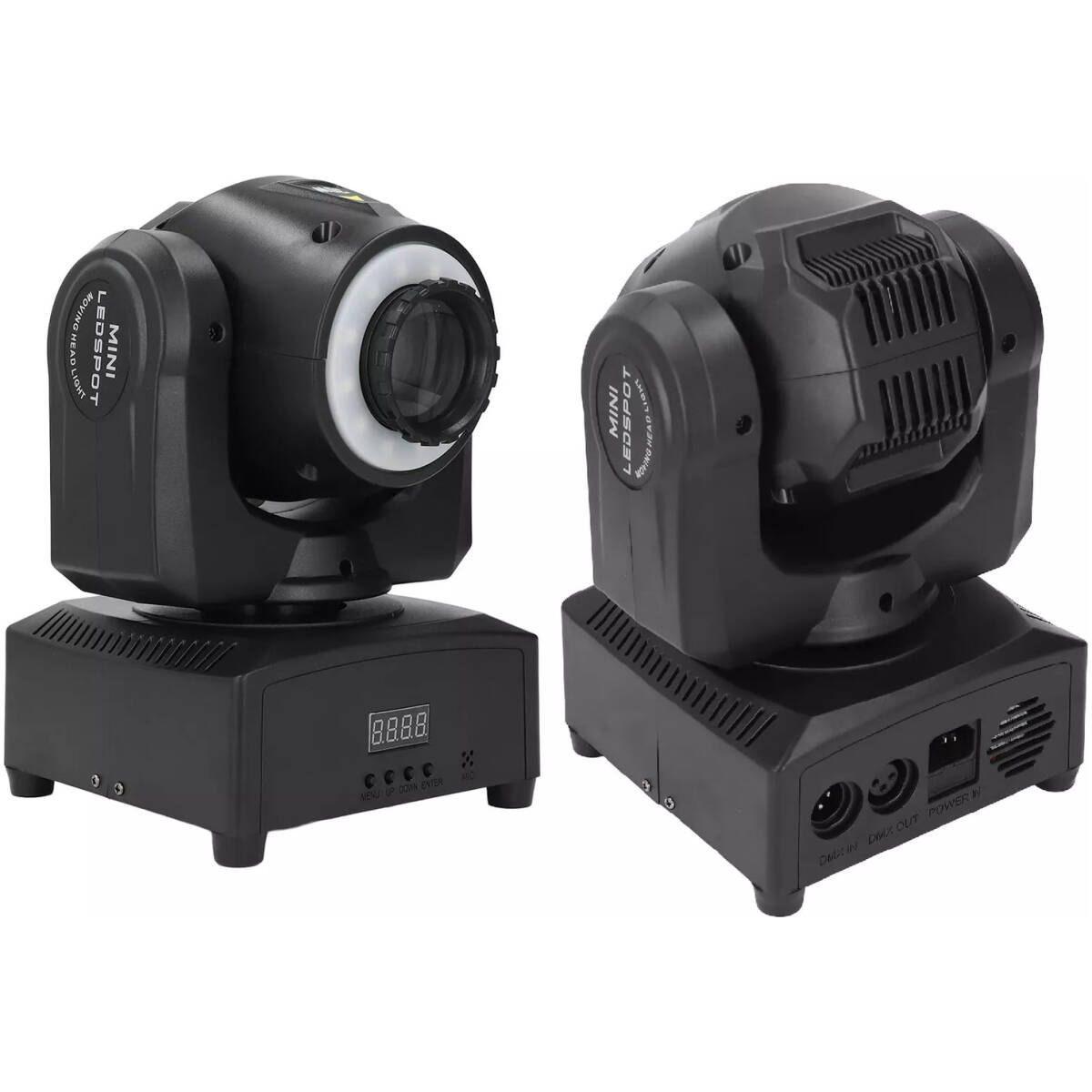

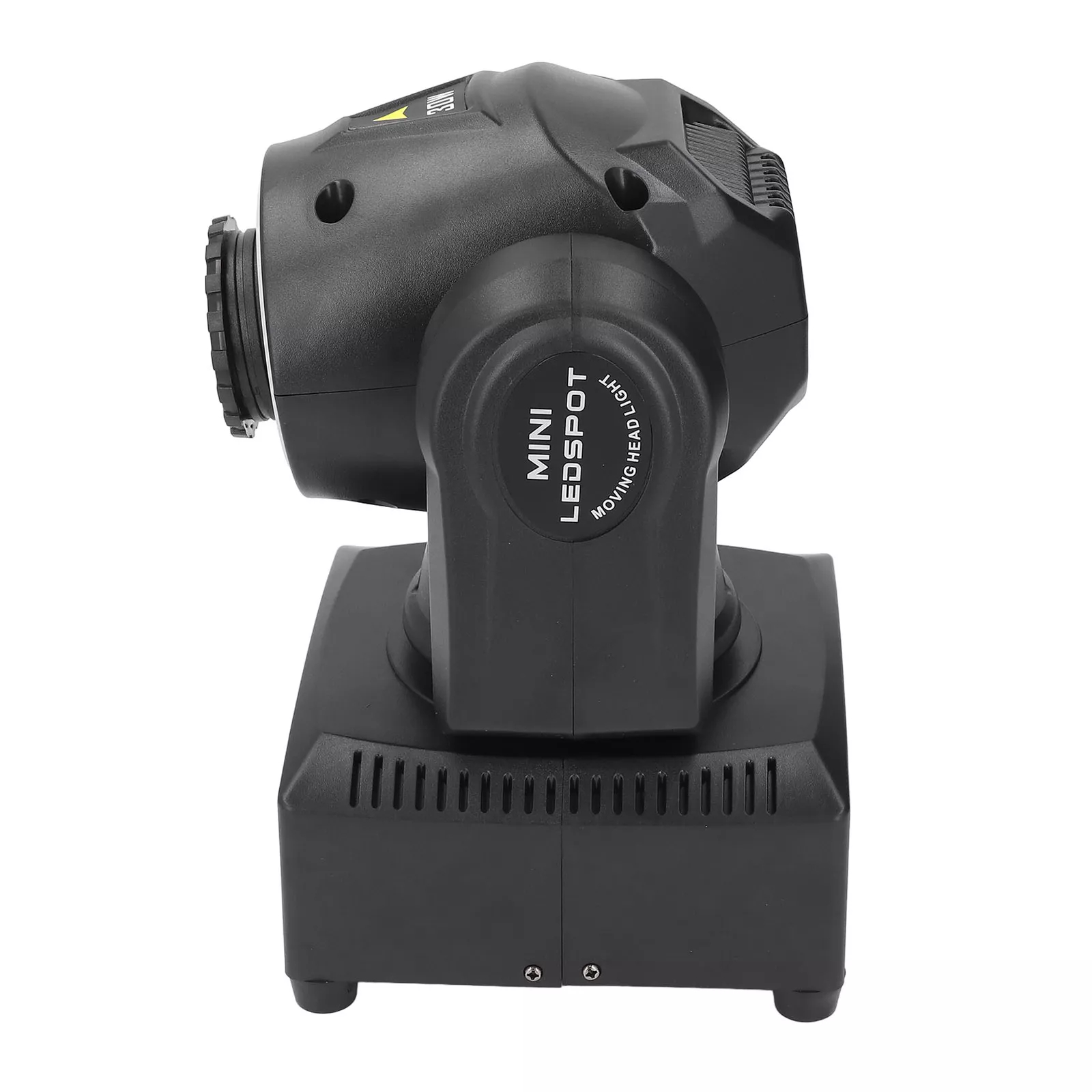

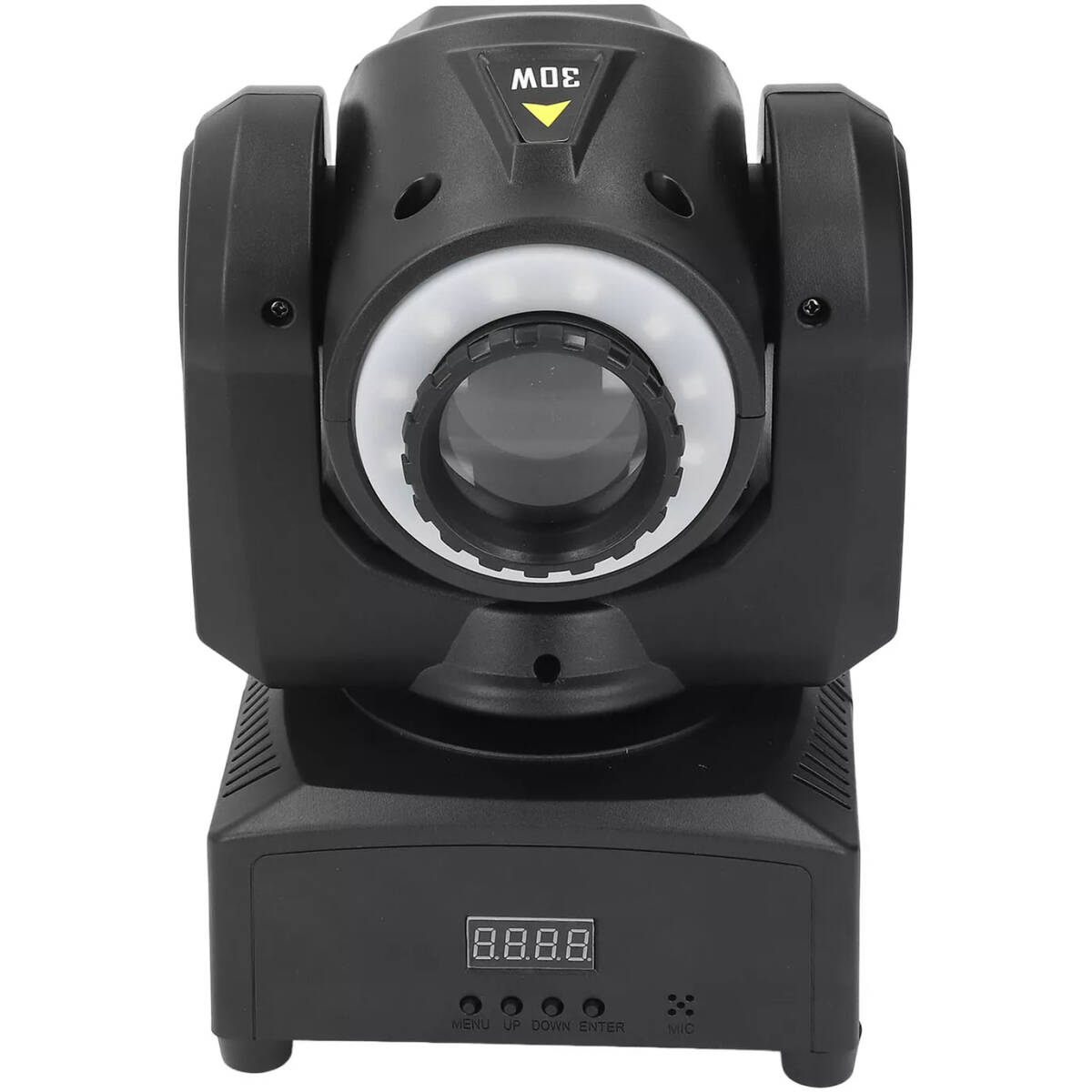

The Imix VIPER 30 is a compact yet powerful 30W LED moving head spotlight designed for dynamic stage lighting and visual effects. Combining 8 rotating gobos, 8 vibrant colors, and 540° tilt / 270° pan movement, this versatile fixture is perfect for small to mid-sized venues, DJ sets, and theatrical productions. With multiple control modes (DMX512, sound activation, master-slave, and auto programs), it delivers professional lighting effects with low power consumption (80W).
Key Features:
Multi-Effect Lighting:
8 GOBOs + 8 Colors: Create intricate patterns and color mixes.
Auto-rotating effects: Adjustable speed for gobo/color transitions.
Precision Movement:
540° tilt / 270° pan with smooth, silent operation.
Manual fine-tuning for reverse rotation or fixed positions.
Flexible Control Options:
DMX512: 9 or 11-channel modes (selectable).
Sound-Active Mode: Syncs to music beats.
Master-Slave & Auto Programs: Standalone operation without a console.
Compact & Efficient:
80W power (AC 110-220V, 50/60Hz).
Lightweight design for easy rigging.
User-Friendly Setup:

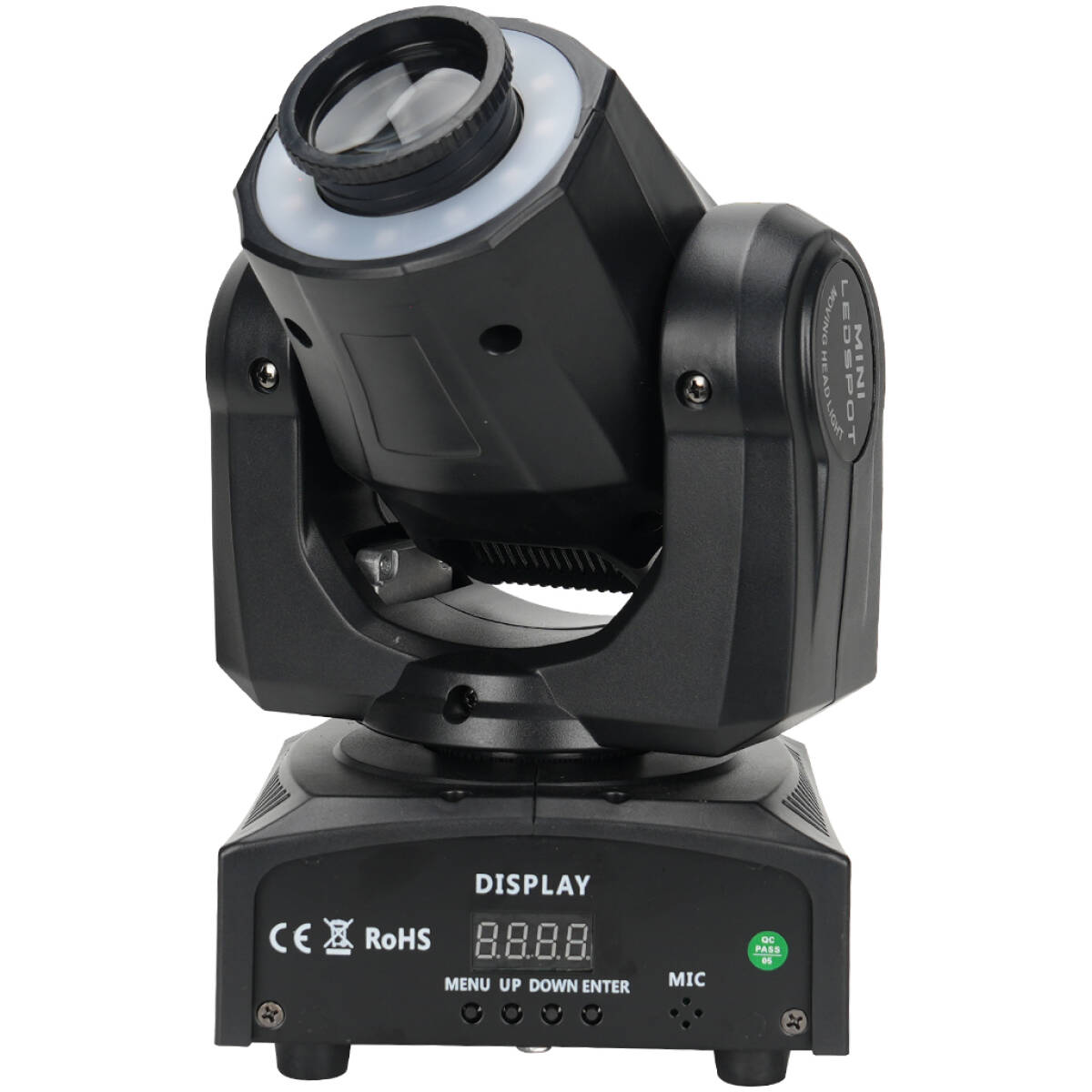

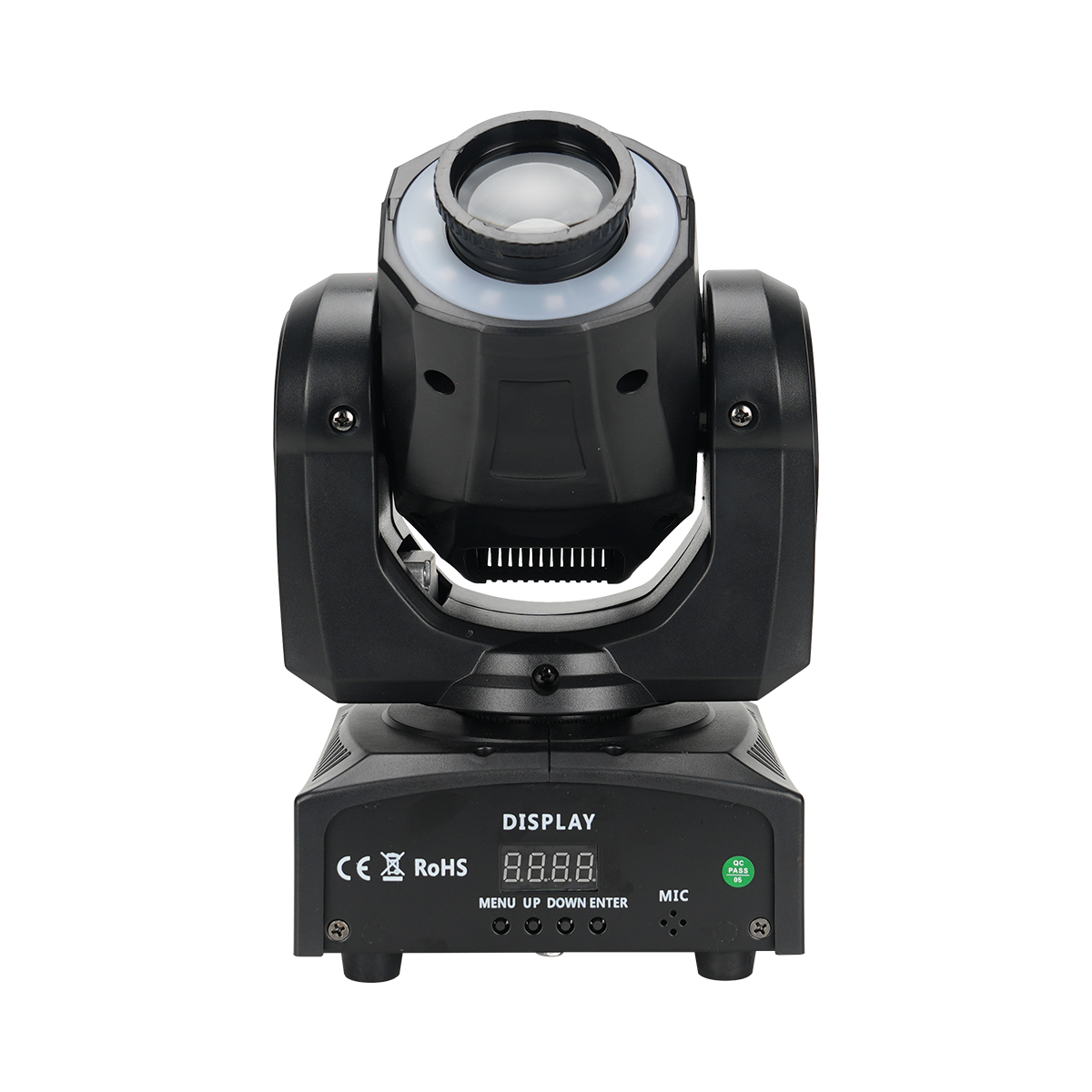

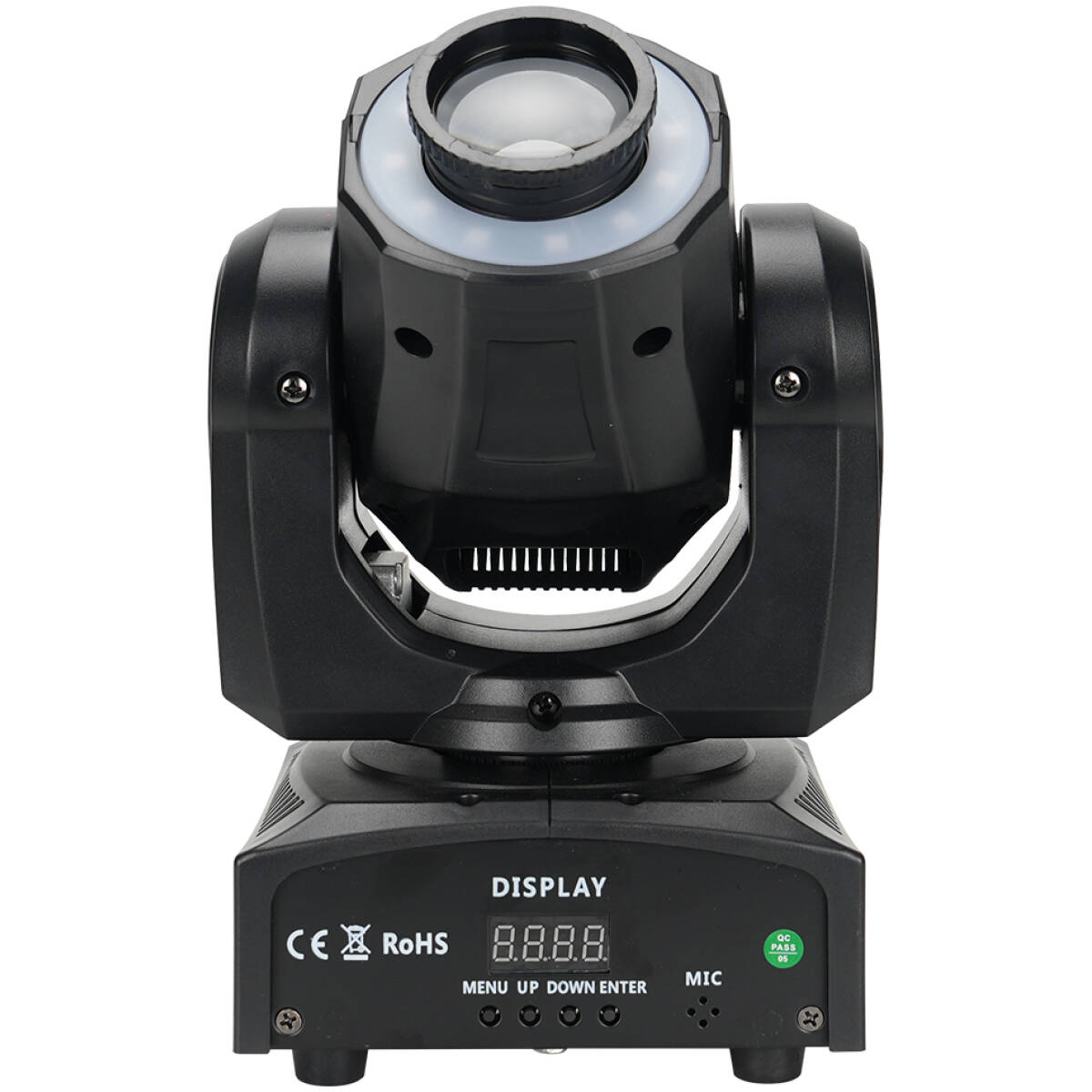

LCD display for address coding and mode selection.
Quick DMX addressing (A001-A512).
DMX Channel Guide (9CH Mode):
| Channel | Function | Value Range |
|---|---|---|
| 1 | Pan Movement | 0-255 (540° range) |
| 2 | Tilt Movement | 0-255 (270° range) |
| 3 | Color Selection | 0-138: Fixed colors |
| 140-255: Color rotation | ||
| 4 | Color Speed/Effect | 0-63: Slow |
| 64-127: Medium | ||
| 128-255: Fast | ||
| 5 | Gobo Selection | 0-255 (8 gobos + rotation) |
| 6 | Dimming | 0-255 (Off to Full) |
| 7 | Pan/Tilt Speed | 0-255 (Slow to Fast) |
| 8 | Auto Mode Reset | 250-255: Reset (5 sec) |
Specifications:
Voltage: AC 110-220V, 50/60Hz
Power: 80W
Gobos: 8 (rotating)
Colors: 8 (static/auto-rotation)
Control Modes: DMX512 (9/11CH), Sound, Master-Slave, Auto
Weight: Lightweight for portable use
Ideal For: Clubs, weddings, mobile DJs, and stage shows.
Note: Use DMX mode for synchronized setups; master-slave mode for simple chaining.
Included: Power cable, user manual.
