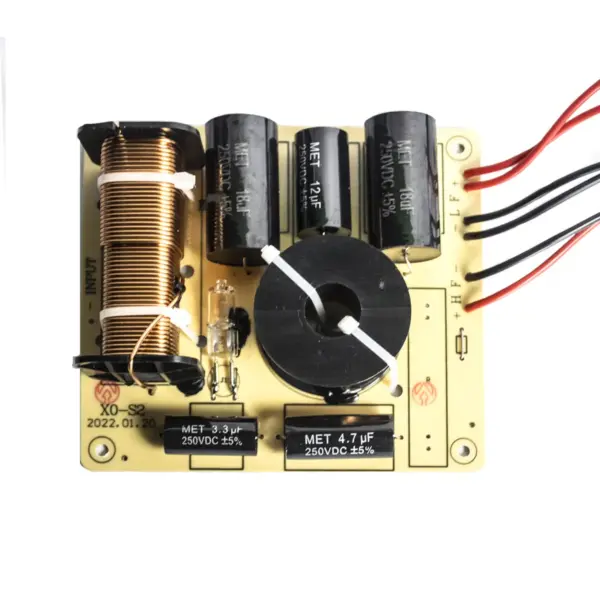

Imix Professional Cross Over XO-S2

The IMIX Professional Cross Over – XO-S2 is an advanced 3-way passive crossover, engineered to provide exceptional sound clarity and performance in a variety of audio systems. With a frequency separation of 2000Hz between the LF and HF channels, it ensures precise and accurate frequency division, resulting in clean, distortion-free sound. Featuring a 12dB/octave slope, the XO-S2 guarantees smooth transitions between the low and high frequencies, maintaining a natural and balanced audio output.

Equipped with HF PTC protection and attenuation control, the XO-S2 protects your high-frequency drivers from overloading while allowing for fine-tuning of the sound. The 8Ω impedance for both LF and HF channels makes this crossover ideal for a wide range of professional audio setups, ensuring compatibility with various speakers and systems.

Specifications:

• • Type: 2-Way Passive Crossover
  • Frequency: 2000Hz (LF/HF)
  • Slope: 12dB/octave
  • Protection: HF PTC Protection/Attenuation
  • Impedance: LF/8Ω, HF/8Ω

• Package Size: 156 x 126 x 79 (mm)
