Imix Mini 1024 Pearl DMX Controller
R10500,00
IMIX Mini 1024 Pearl DMX Controller
Professional Lighting Console with Avolite Pearl R20 Compatibility
In stock
The Imix Mini 1024 Pearl is a compact yet powerful DMX512 controller designed for stage lighting, events, and live performances. With 1024 channels, 96-fixture capacity, and Avolite Pearl R20 library support, it delivers intuitive control over moving heads, LED fixtures, and effects. Features include 60 programmable scenes, 5 simultaneous shape generators, and USB connectivity for seamless show management.
Key Features
✅ 1024 DMX Channels – Control up to 96 fixtures (40 primary + 40 fine-tune channels each)
✅ Avolite Pearl R20 Library – Pre-loaded fixture profiles for quick setup
✅ 60 Scenes + 600 Steps per Chase – Store and recall complex lighting sequences
✅ 5 Simultaneous Shape Effects – Pan/tilt circles, RGB rainbows, dimmer waves, and more
✅ USB Memory Support – Save/load shows and update fixture libraries (FAT32 format)
✅ Intuitive Workflow – Dedicated attribute sliders, fan mode, and HTP/LTP fade controls
✅ Compact & Portable – Ideal for touring and small-to-medium venues
Technical Specifications
| Category | Details |
|---|---|
| DMX Channels | 1024 (96 fixtures max) |
| Fixture Control | 40 primary + 40 fine-tune channels per fixture |
| Scenes | 60 (10 simultaneously runnable) |
| Chases | 600 steps per chase |
| Shapes | 5 simultaneous (Dimmer, Pan/Tilt, RGB, CMY, Gobo, Iris, Focus) |
| Library | Avolite Pearl R20 compatible |
| USB Support | Save/load shows, update libraries (FAT32) |
| Display | 0.38-inch 4-digit LCD + 4-button navigation |

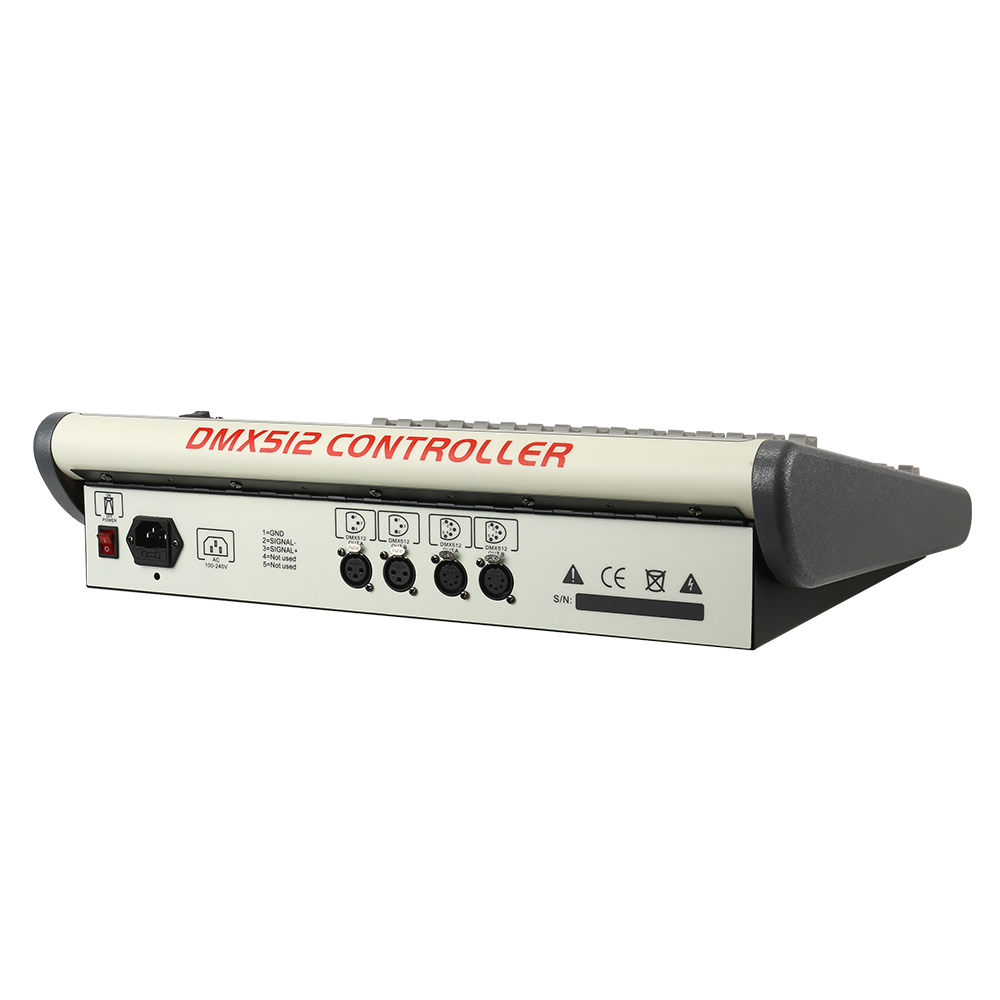

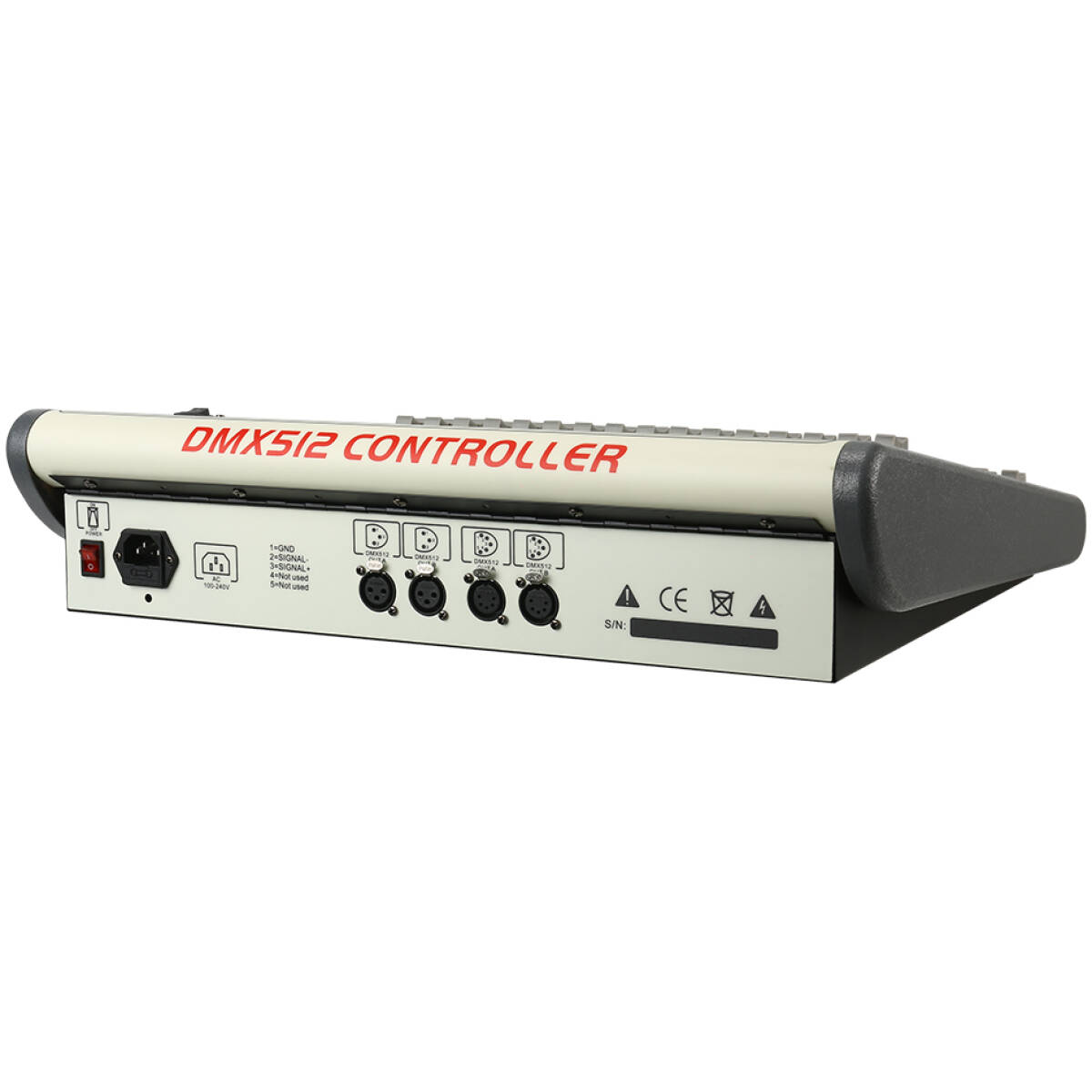

| Connectivity | DMX512 output, USB port |
| Power | AC 100-240V, 50/60Hz |
Control Capabilities
1. Fixture Patching
-
Assign DMX addresses (001-512) manually or via auto-calculation
-
Repatch fixtures without losing programming
-
Swap pan/tilt channels for sideways-mounted fixtures
2. Advanced Effects
-
Shape Generator: Create dynamic movements (circles, rainbows, pulses)
-
Fan Mode: Spread values across fixtures for gradient effects
-
HTP/LTP Fading: Precise control over dimmer and non-dimmer channels
3. Scene & Chase Programming
-
60 Scenes: Store looks with customizable fade times (In/Out, LTP slope)
-
600-Step Chases: Build complex sequences with step timing controls
-
Global Time Adjustment: Sync speed across all playbacks
4. Real-Time Control
-
16 Sliders: Adjust attributes or fixture levels on the fly
-
2 Encoder Wheels: Fine-tune values (color, position, gobo)
-
Flash Buttons: Instant strobe/effect triggers

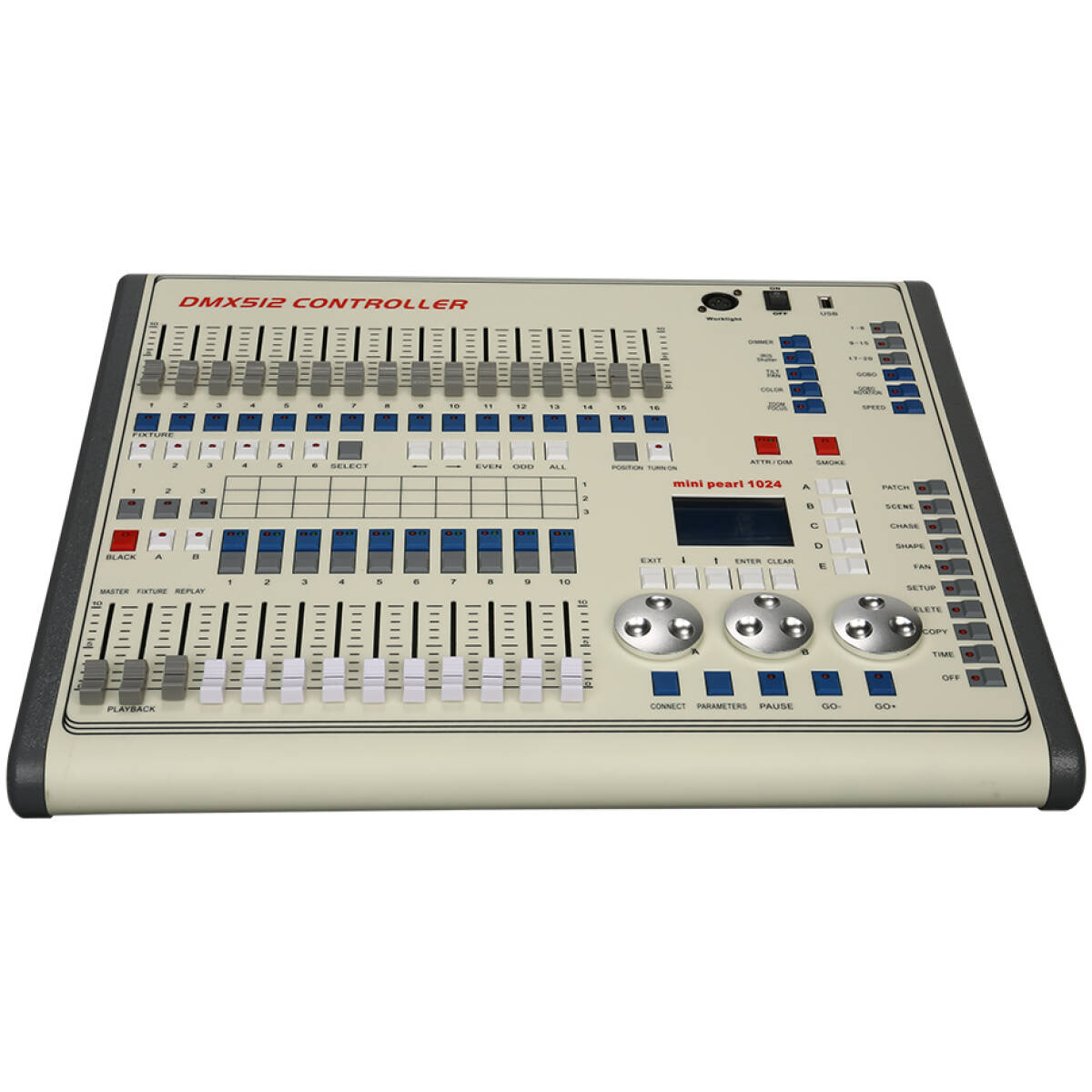

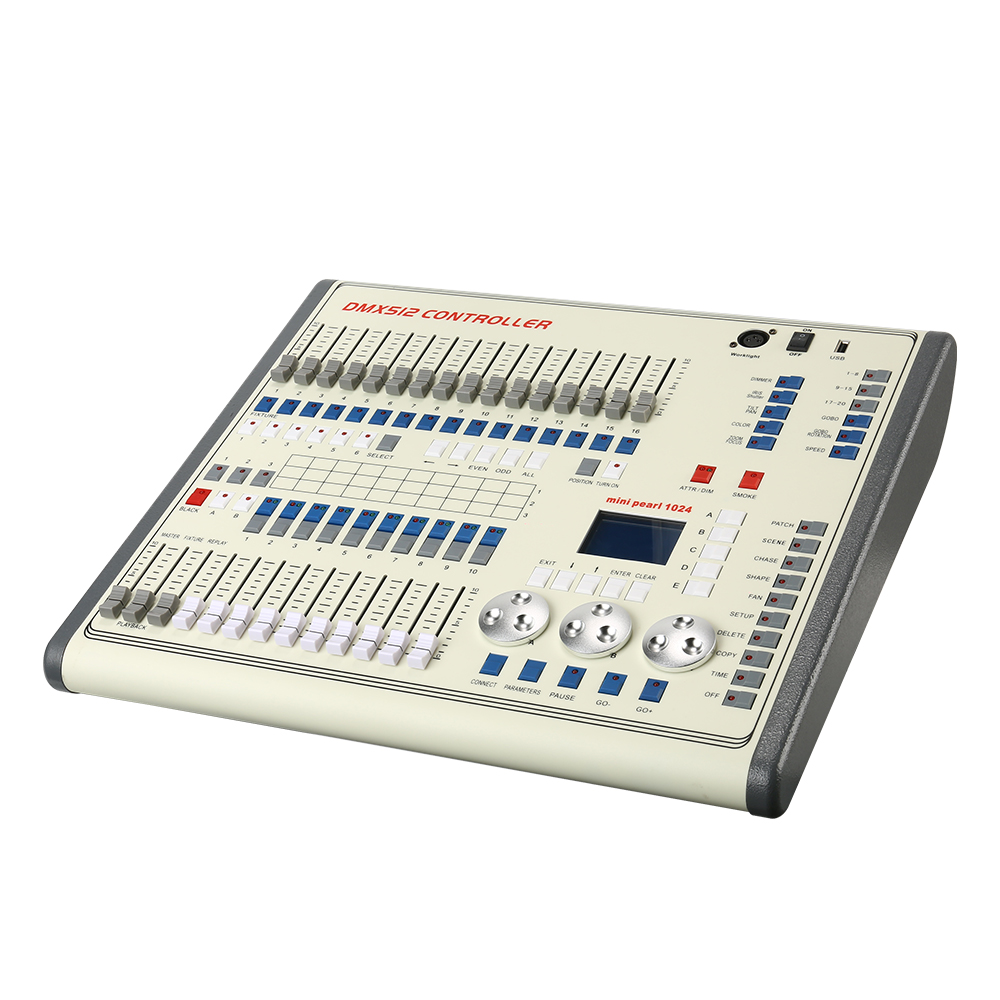

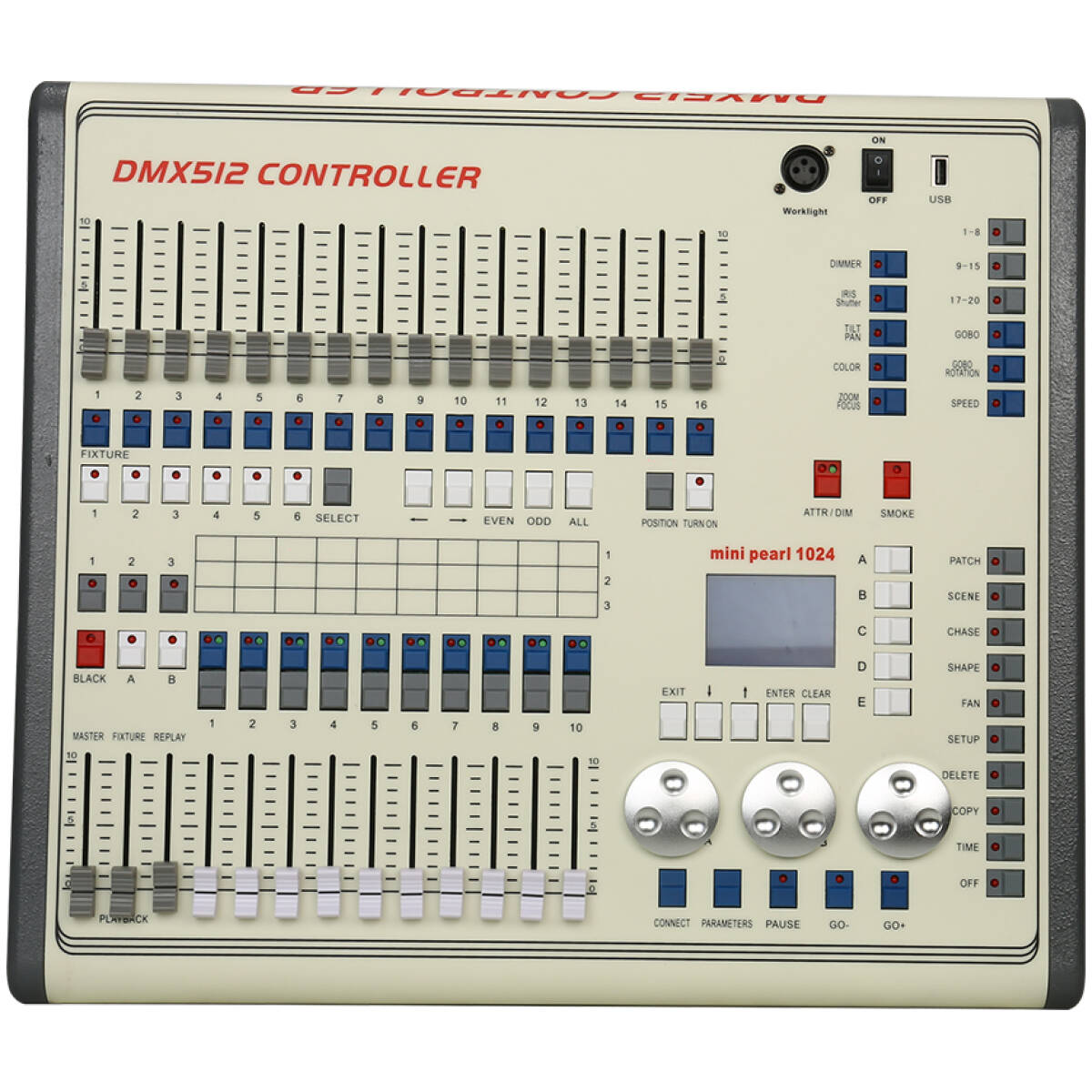

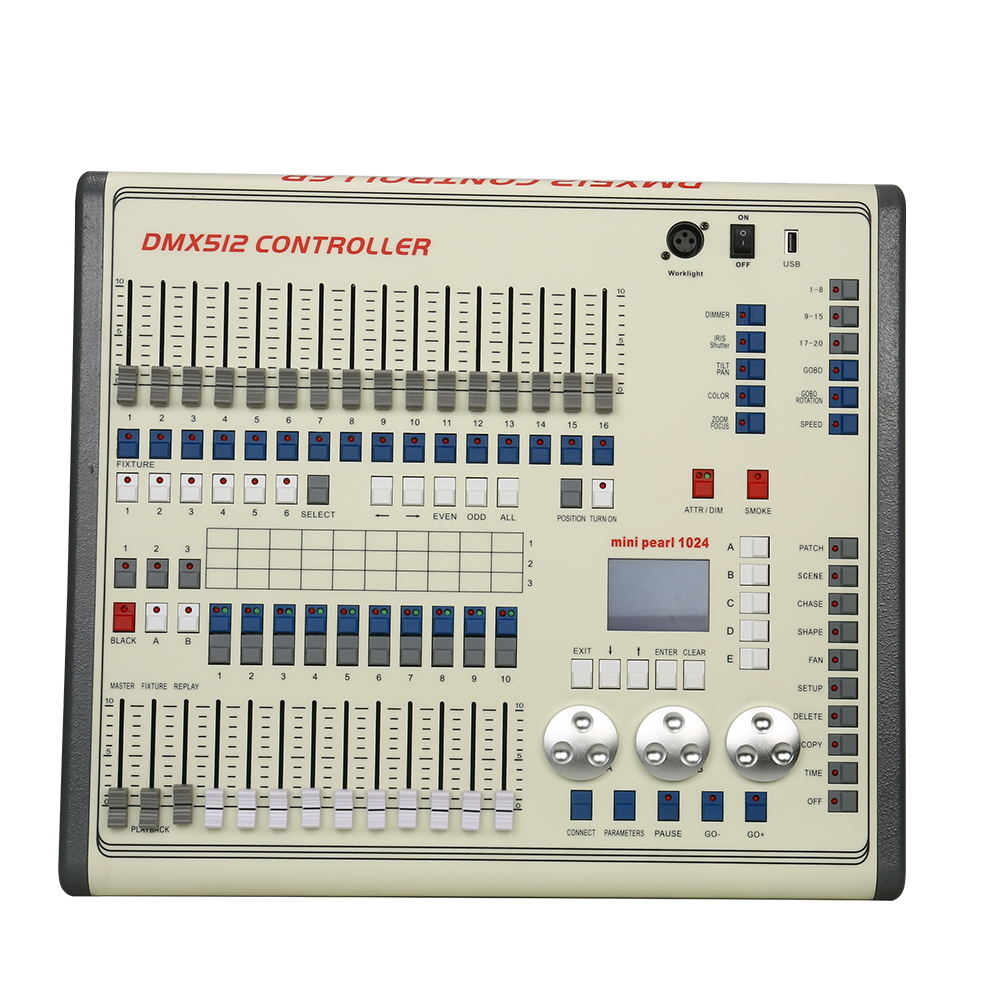

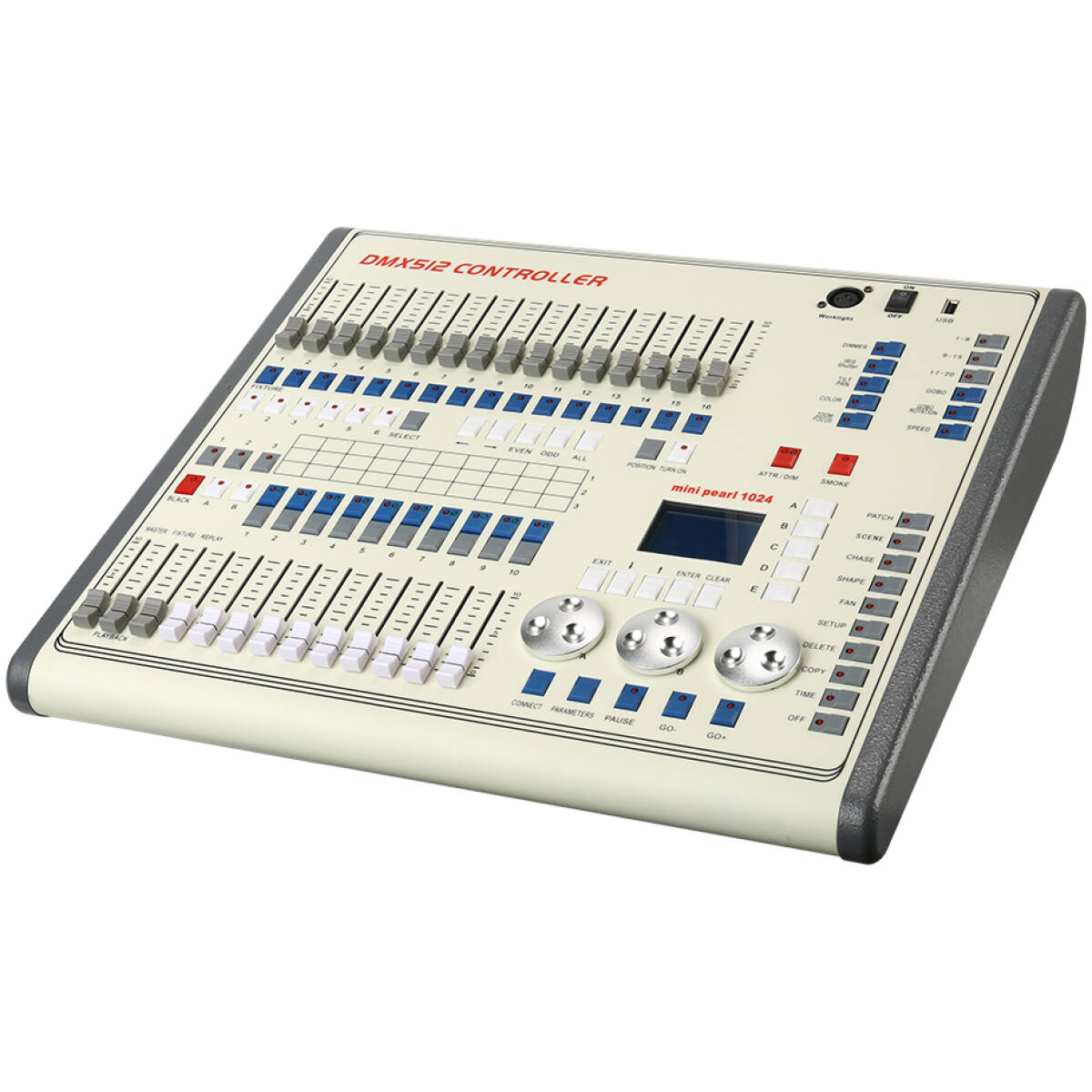

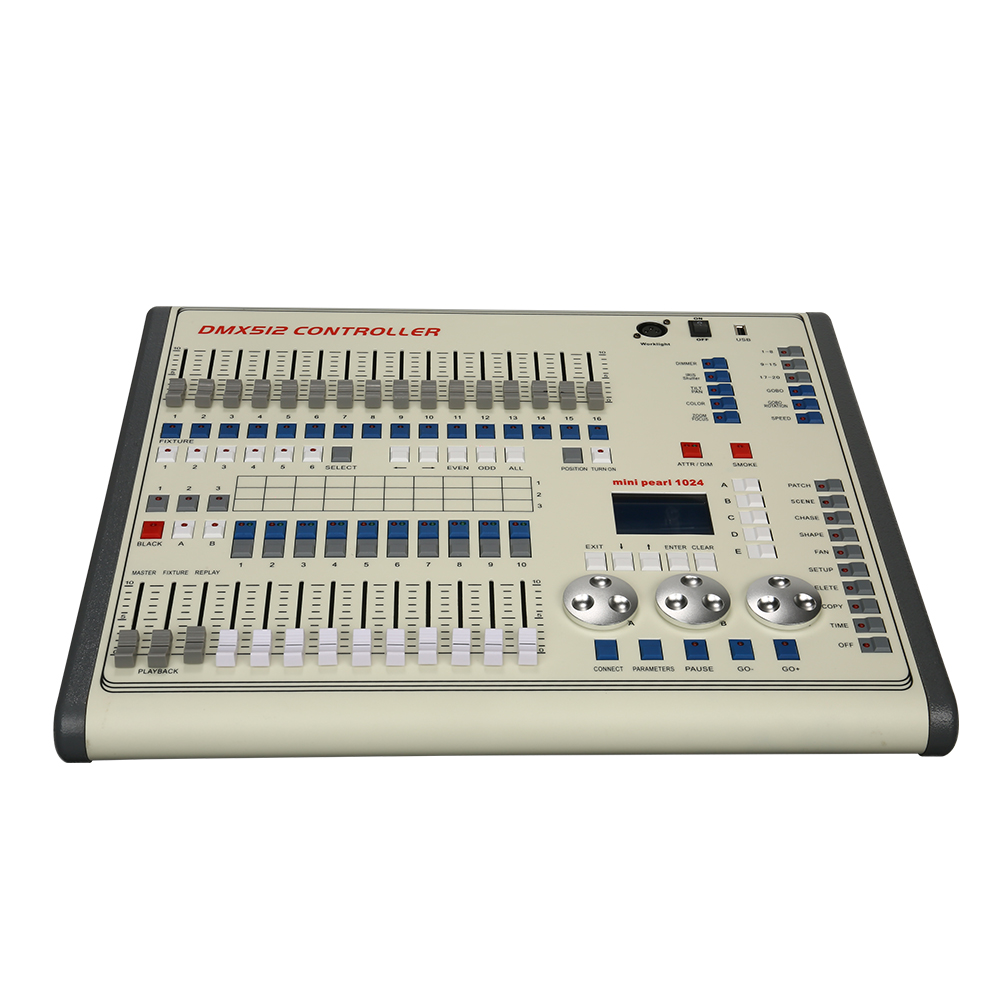

Front Panel Layout
-
Fixture Area: 16 buttons + sliders (6 pages for 96 fixtures)
-
Playback Area: 10 scene/swop buttons, 10 flash buttons, 5 page keys
-
Attribute Control: 8 buttons + 3 banks for quick parameter access
-
Function Keys: Patch, shape, fan mode, and utilities
-
LCD Menu: Navigate libraries, scenes, and set
Package Includes:
-
1 × IMIX Mini 1024 Pearl Controller
-
Power Cable
-
User Manual
-
Personality Builder Software CD (for custom fixture profiles)
