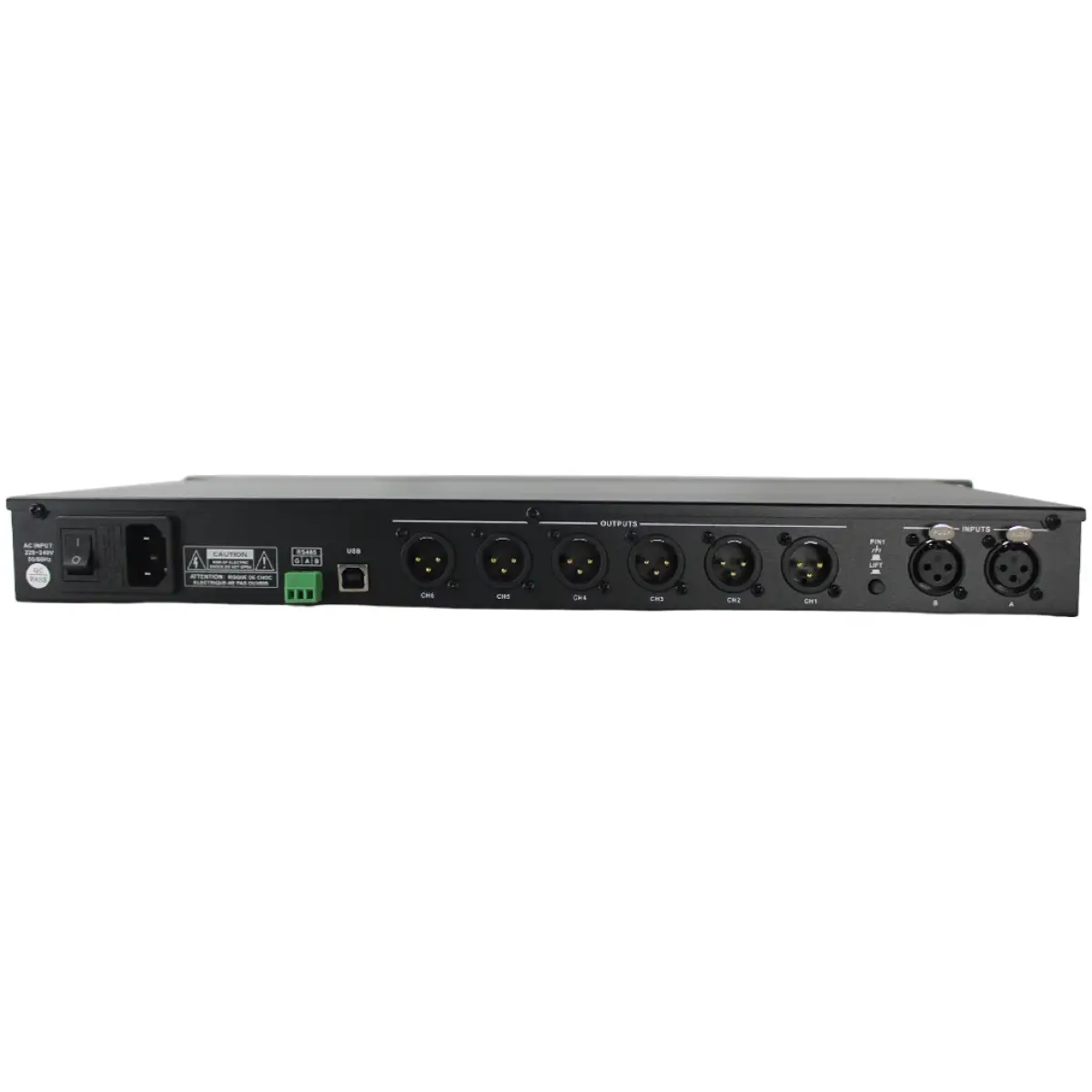

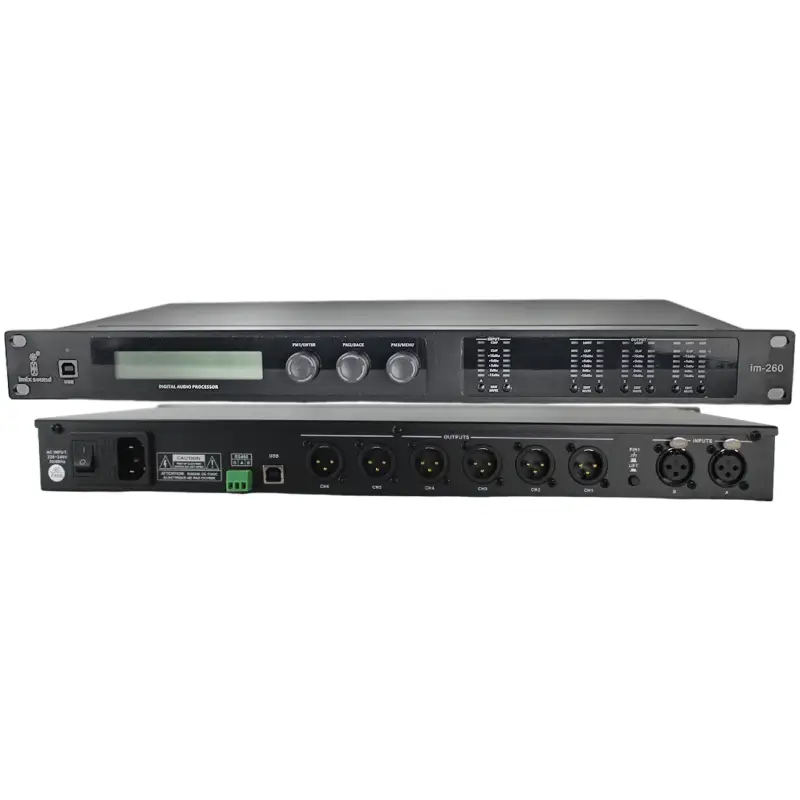

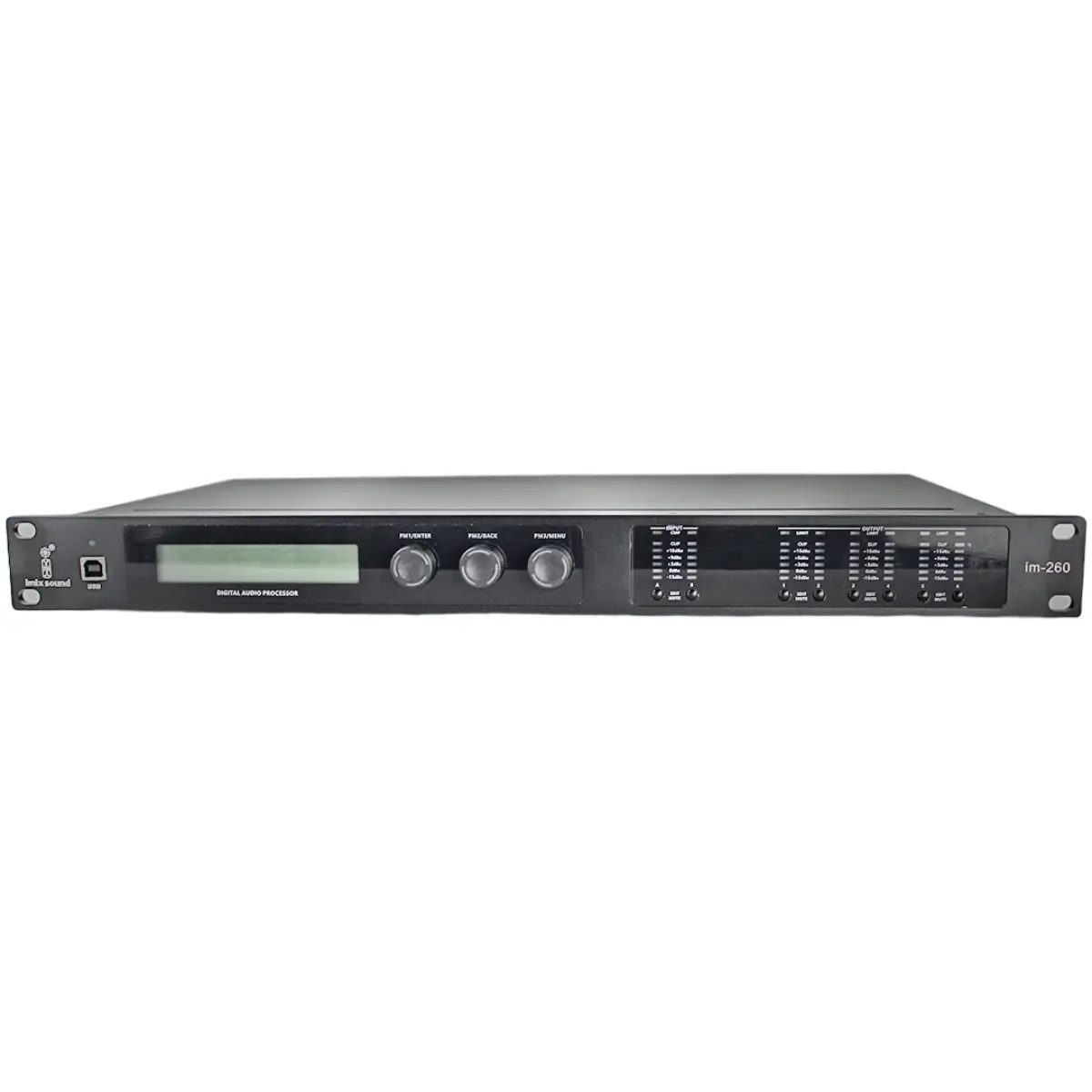

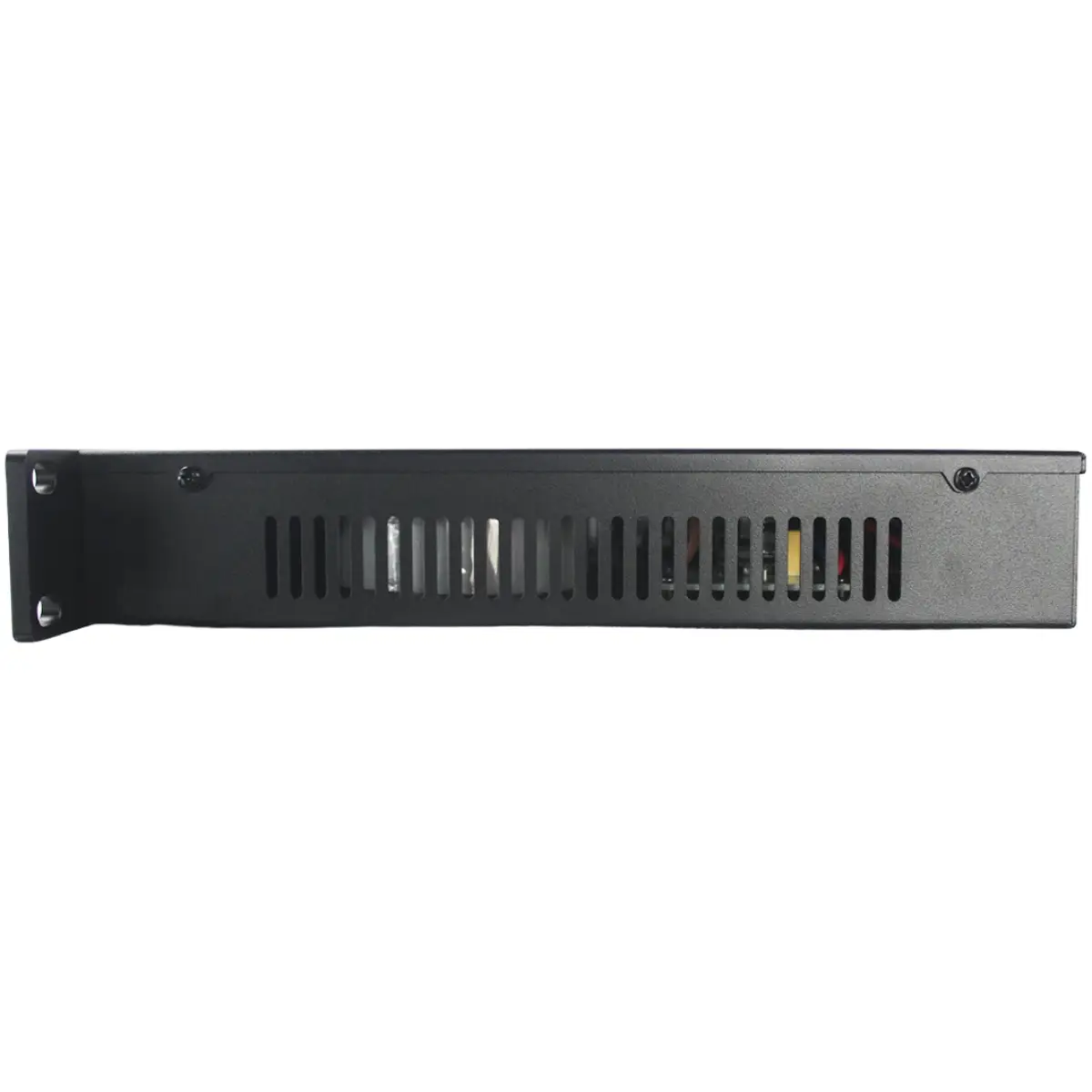

Imix IM-260 Digital Signal Processor
R6850,00
Digital Speaker Processor
This Digital Audio Processor utilizes advanced 24-bit, 48k A/D D/A conversion to deliver precise sound management for PA and professional audio applications. Featuring dynamic processing, high-frequency division, and balanced XLR connections, it ensures optimal signal integrity and performance.
Key Features:
24-bit, 48k A/D D/A conversion for high-fidelity audio
Dynamic processing including gain, phase reversal, equalizer, compressor, and noise gate
Configurable high/low-pass filters (-6dB to -48dB) with Butterworth, Linkwitz-Riley, and Bessel options
Auto-limiter & noise gate for precise signal control
Two-channel electronic balanced inputs & six-channel outputs
Maximum output level: +18dBu, with >100 dB S/N ratio
Full integration with XLR balanced connectors & RS-485 control compatibility
Power consumption: 30W, supporting AC 220V-240V, 50/60Hz
| Weight | 2,4 kg |
|---|---|
| Dimensions | 152 × 48,2 × 4,4 cm |
In stock
Related products

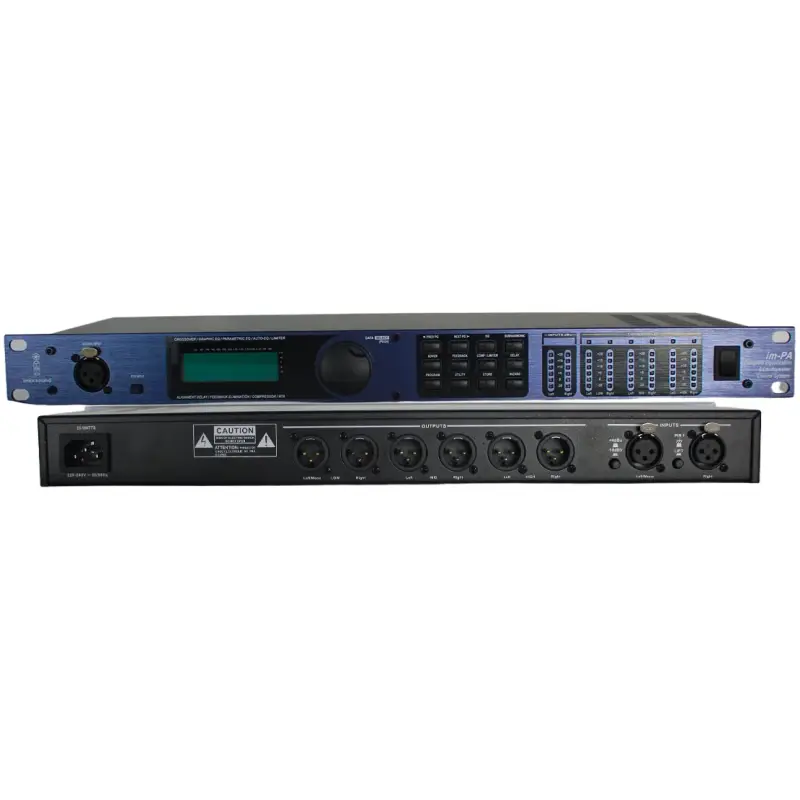

Imix IM-PA Digital Signal Processor
Complete Equalization and Loudspeaker Control System
The IM-PA is a professional loudspeaker management system designed for PA applications, integrating advanced equalization, crossover, and dynamic processing into one streamlined unit. Built on legendary DriveRack technology, it optimizes sound quality, eliminates the need for multiple processing devices, and ensures precise control over your audio setup.
Key Features:
- Stereo Feedback Elimination (12-notch filters)
- Dual 28-band Graphic EQ & Multi-band Parametric EQ
- Compressor & 120A Sub-harmonic Synthesizer
- Configurable Crossovers (2x3, 2x4, 2x5, 2x6)
- Auto-EQ with 28-Band RTA & Pink Noise Generator
- Speaker & Power Amp Tunings with Setup Wizard
- 25 User & 25 Factory Programs
- 2 XLR Inputs & 6 XLR Outputs
- 24-Bit ADC/DAC, >110 dB Dynamic Range
- Full Graphic LCD Display & TypeIV Conversion System
The IM-PA delivers high-performance sound management with a user-friendly design, making it ideal for live sound, auditoriums, and professional setups.

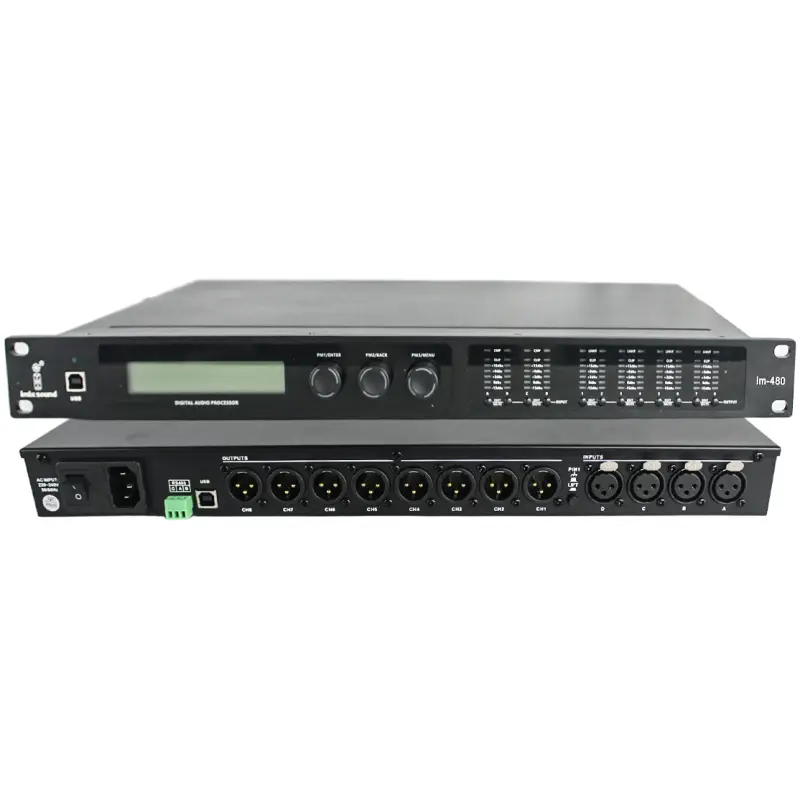

Imix IM480 Digital Signal Processor
Key Features:
- Comprehensive Digital Processing: Includes gain control, phase reversal, noise gate, equalization, slope filters, dynamic filtering, frequency division, delay, compression, and signal routing functions.
- Balanced Connectivity: Supports four-channel XLR balanced input and eight-channel XLR balanced output, providing high-quality audio transmission.
- User-Friendly Interface: Features an LCD screen, multiple parameter control buttons, and USB/RS485 connectivity for seamless integration with PC software for parameter adjustments.
- Flexible Output Control: Equipped with output limiters, compressors, parametric equalizers (30-segment input, 7-segment output), and adjustable gain (-18dB to +12dB).
- Advanced Filters: High-pass (low-cut) and low-pass (high-cut) filters with selectable Butterworth, Linkwitz-Riley, and Bessel 12dB variable Q value options.
- Noise Gate & Compression: Adjustable threshold values, startup time, and release time for precise dynamic control.
- Reliable Power & Protection: Operates on AC 220V-240V @ 50/60Hz with a power consumption of <50W and built-in RF protection.
