Imix Hazer 600 Professional Haze Machine
R5550,00
Imix Hazer 600 Professional Haze Machine
High-Capacity, Low-Consumption Haze Generator for Stage & Events
In stock
The IMIX Hazer 600 is a professional-grade haze machine designed for creating uniform, long-lasting atmospheric effects. With DMX512 control, wireless remote operation, and instant activation (no preheating), it delivers ultra-fine haze with wide coverage for concerts, theaters, and events. Features include low fluid consumption and non-toxic output for safe use in performance environments.
Key Features
✅ Instant Operation – No preheating required
✅ Triple Control Modes – DMX512, wireless remote, and manual panel
✅ Adjustable Output – Airflow (F0-F100) and timer settings (1-200s)
✅ Low Fluid Consumption – Economical and efficient
✅ Safe & Non-Toxic – Complies with performance venue safety standards

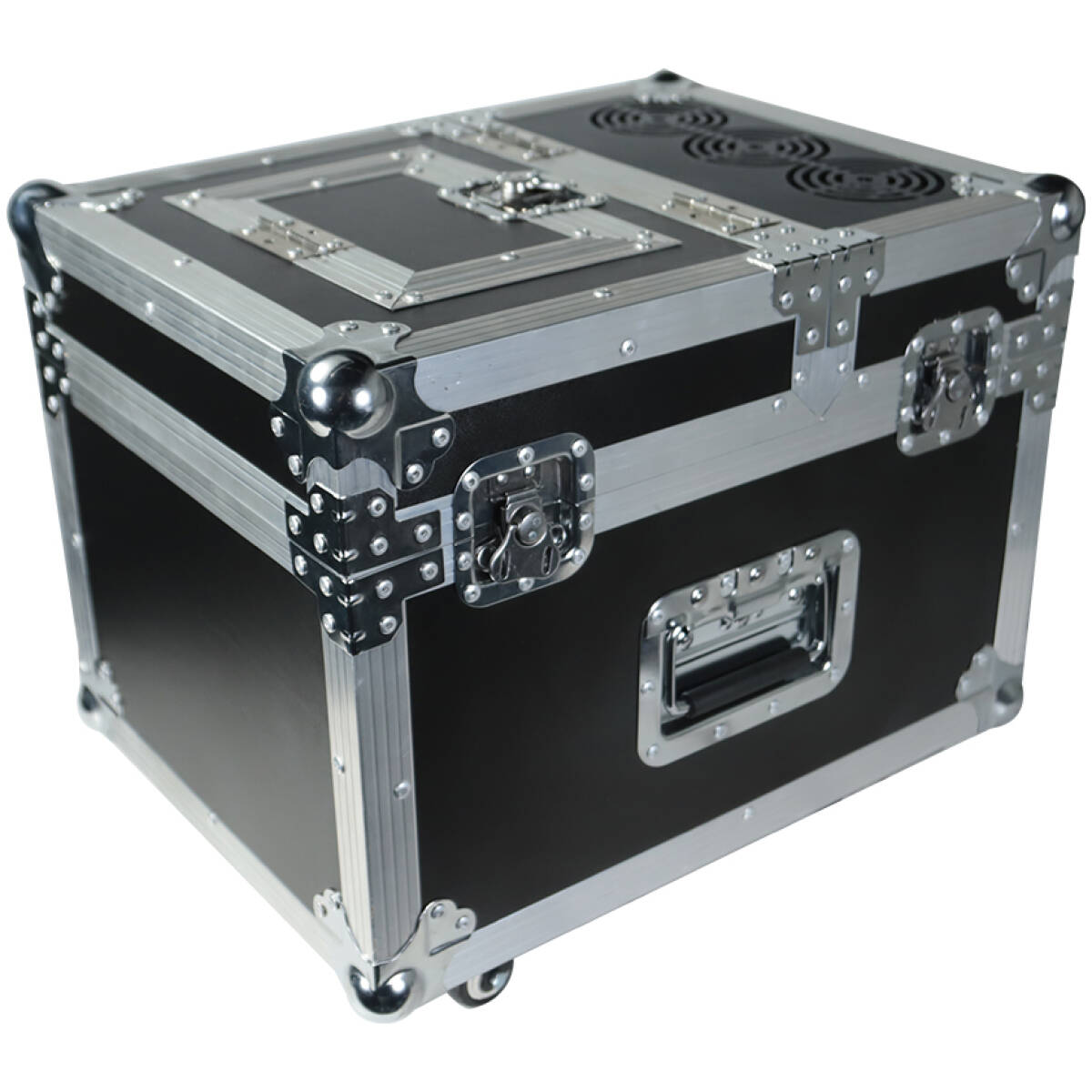

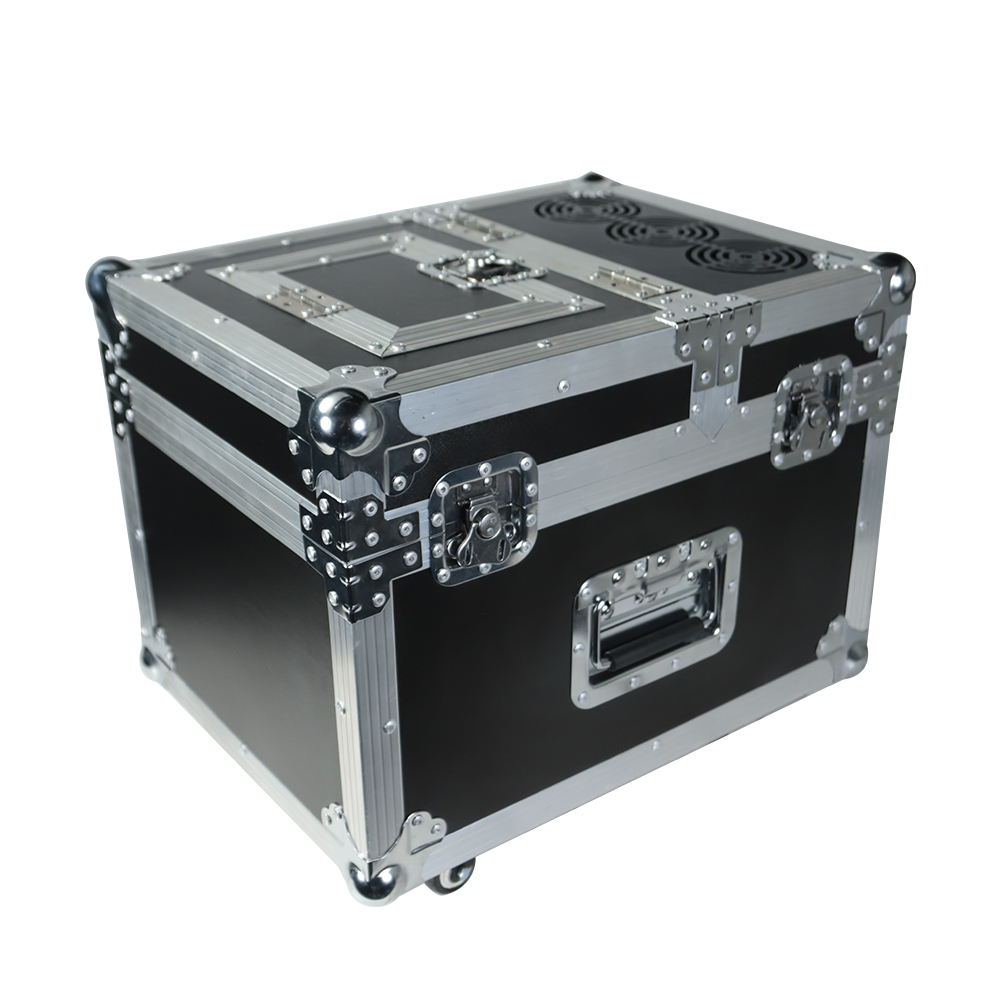

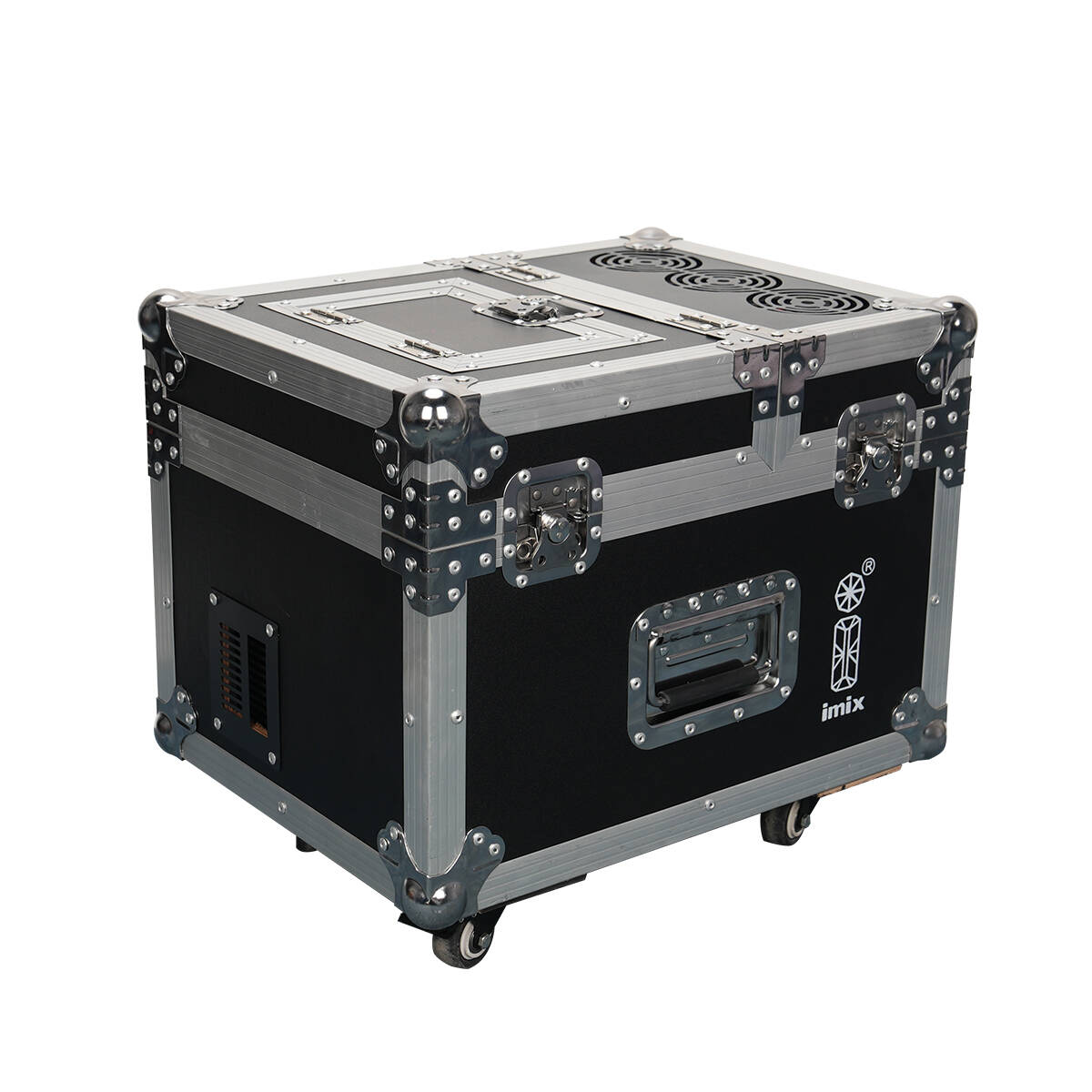

✅ Compact & Portable – Easy to transport and set up
Technical Specifications
| Category | Details |
|---|---|
| Control Modes | DMX512 (2 channels), wireless remote, manual panel |
| Haze Output | Wide-coverage, ultra-fine particles |
| Tank Capacity | 2L max (avoid overfilling) |
| Power Supply | AC 100-240V, 50/60Hz |
| Display | Digital tube for DMX address, airflow, and timer settings |
| Safety | Auto-shutoff to prevent dry burning |
| Weight | 15kg |
Setup & Operation
1. Initial Setup
-

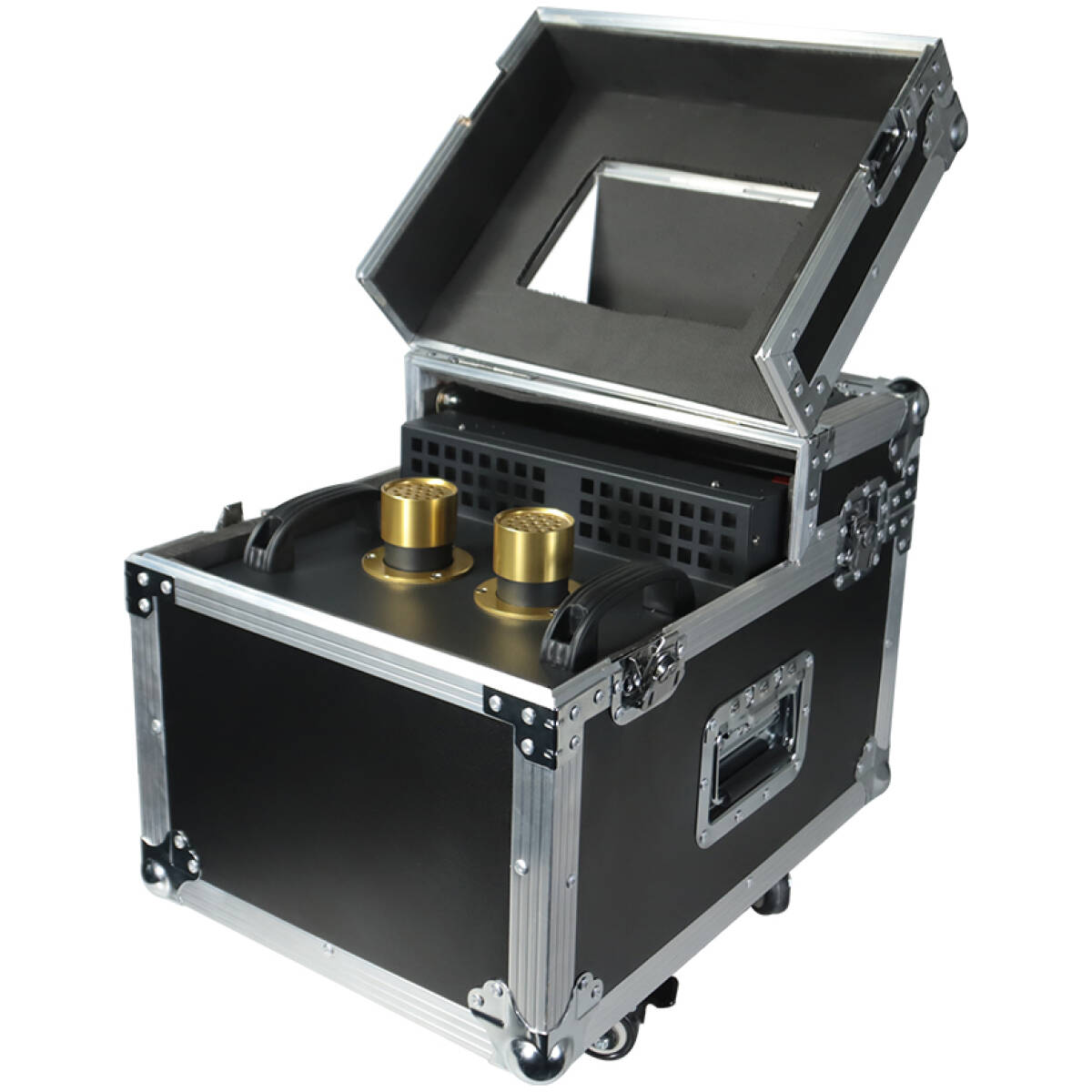

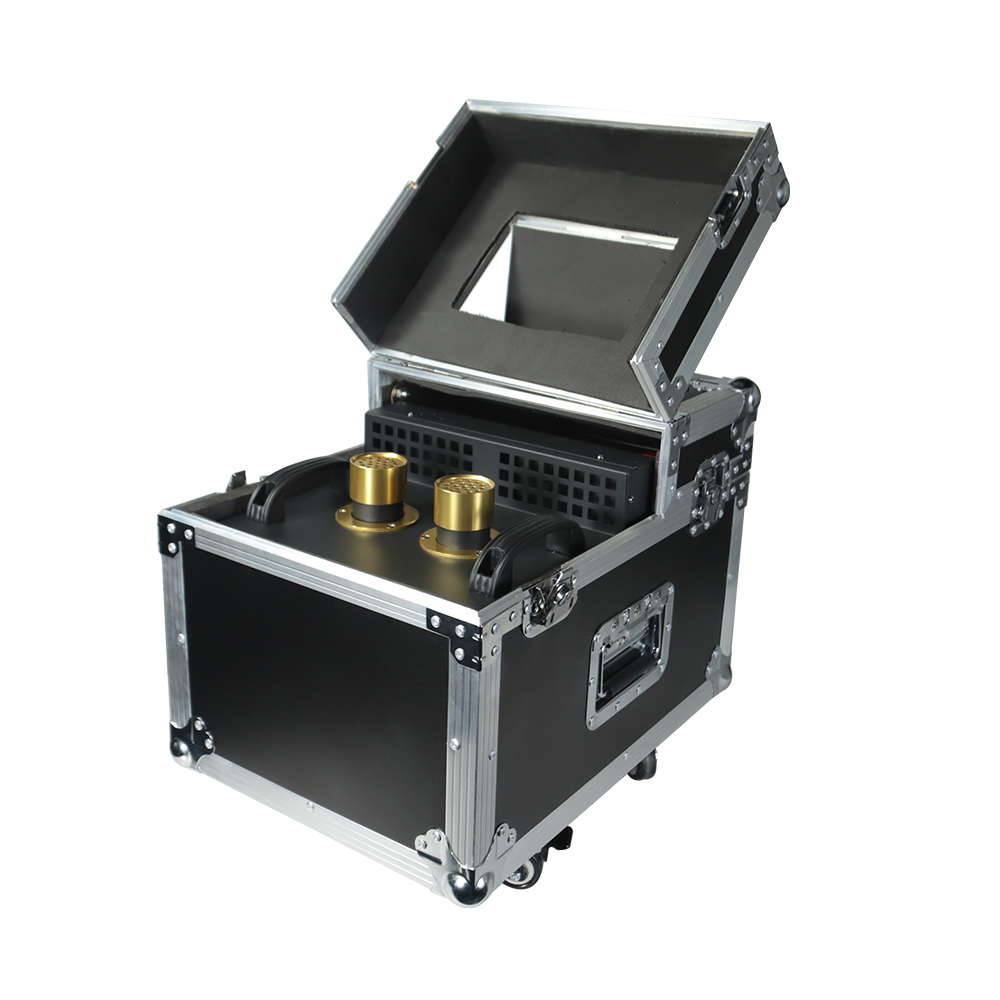

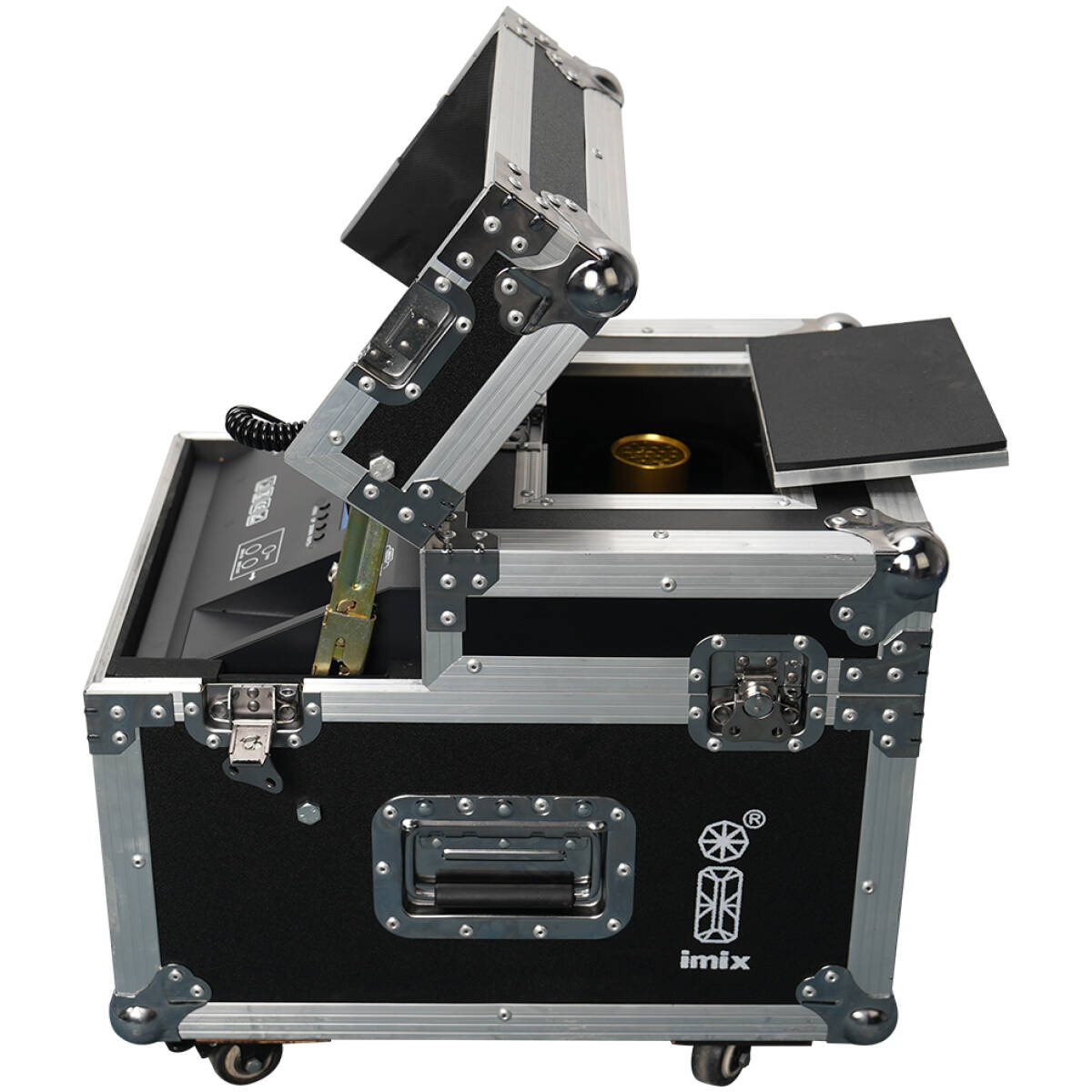

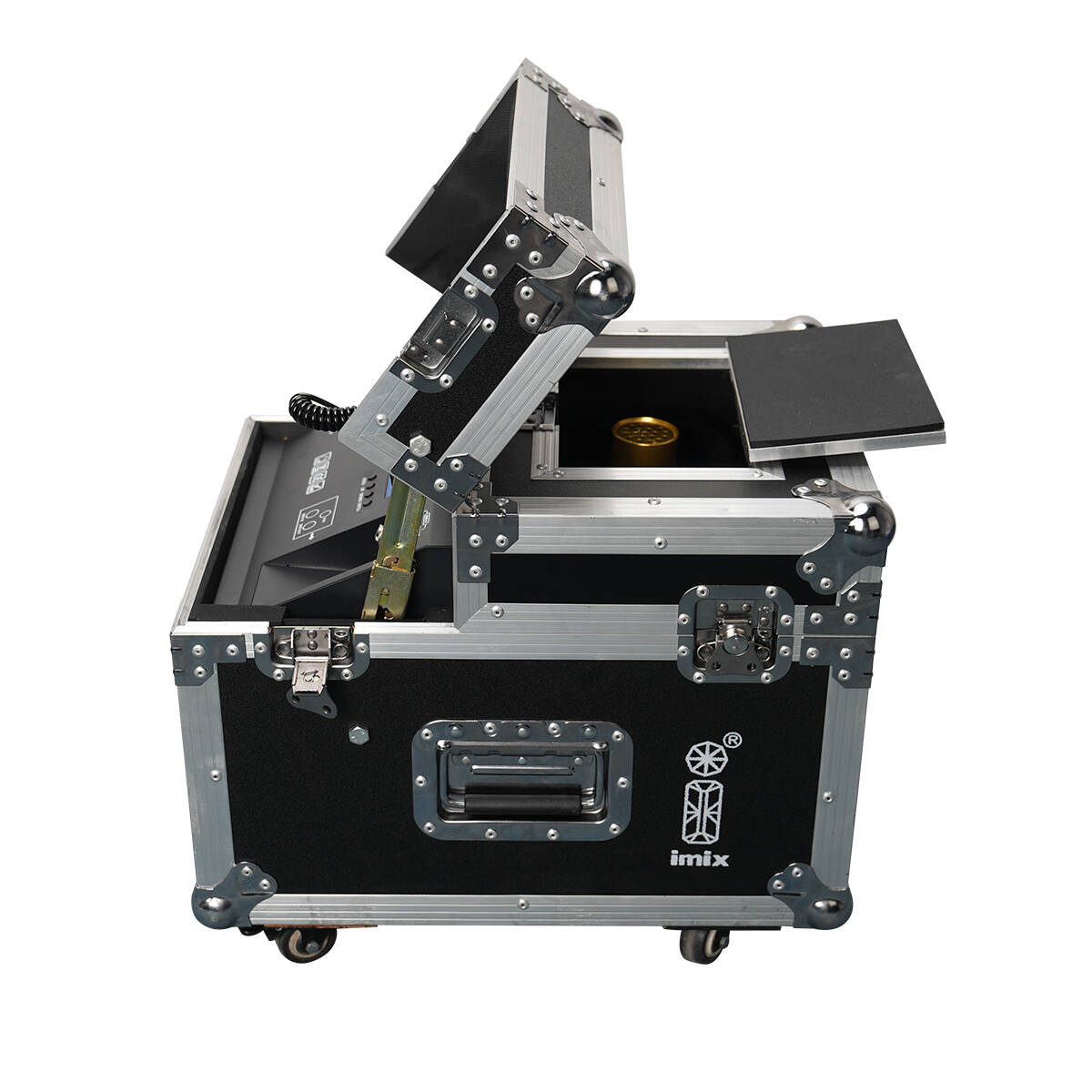

Replace Lids: Remove the black air outlet cover and install the gold vent lid before use.
-
Fill Fluid: Use high-quality haze fluid (max 2L) to avoid clogging.
-
Power On: Connect to DMX or use the wireless remote. The digital tube displays a “horse racing” cycle in standby mode.

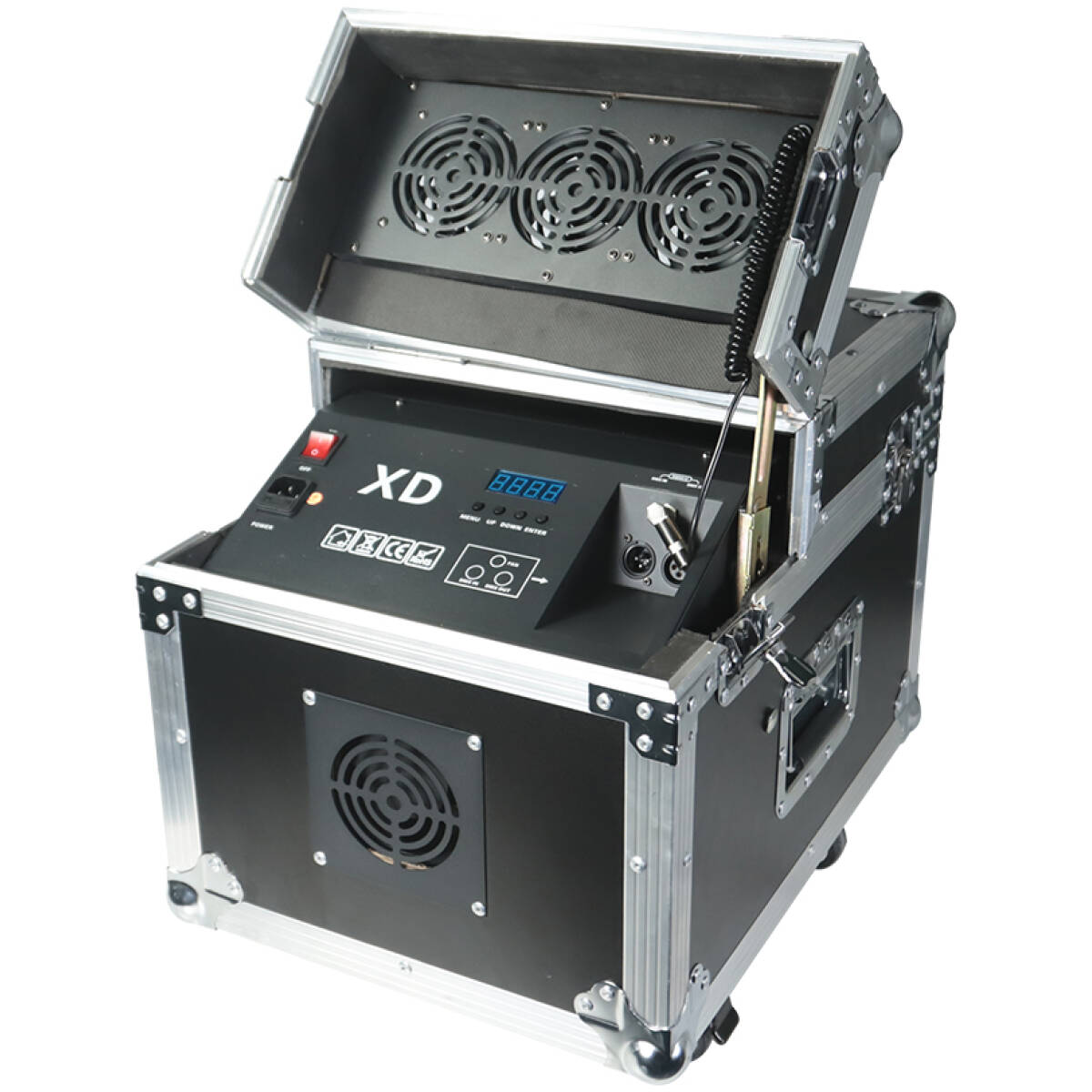

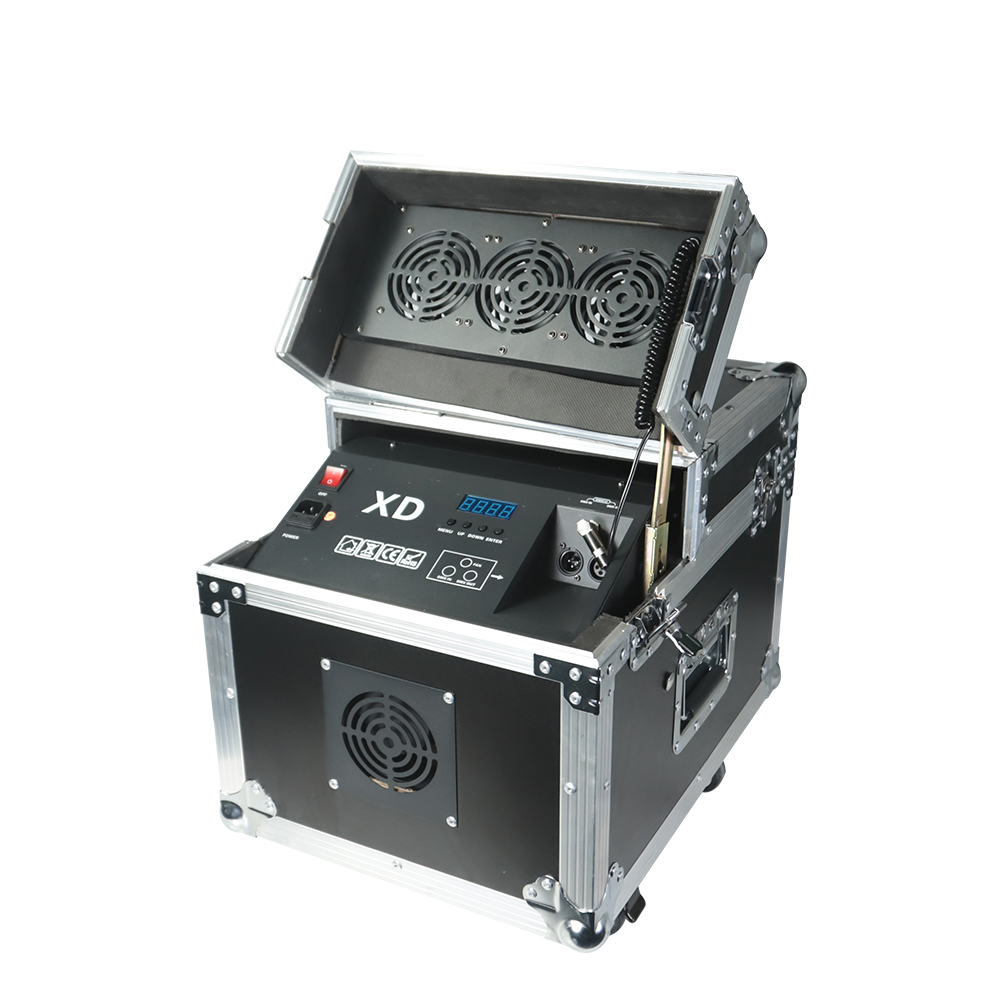

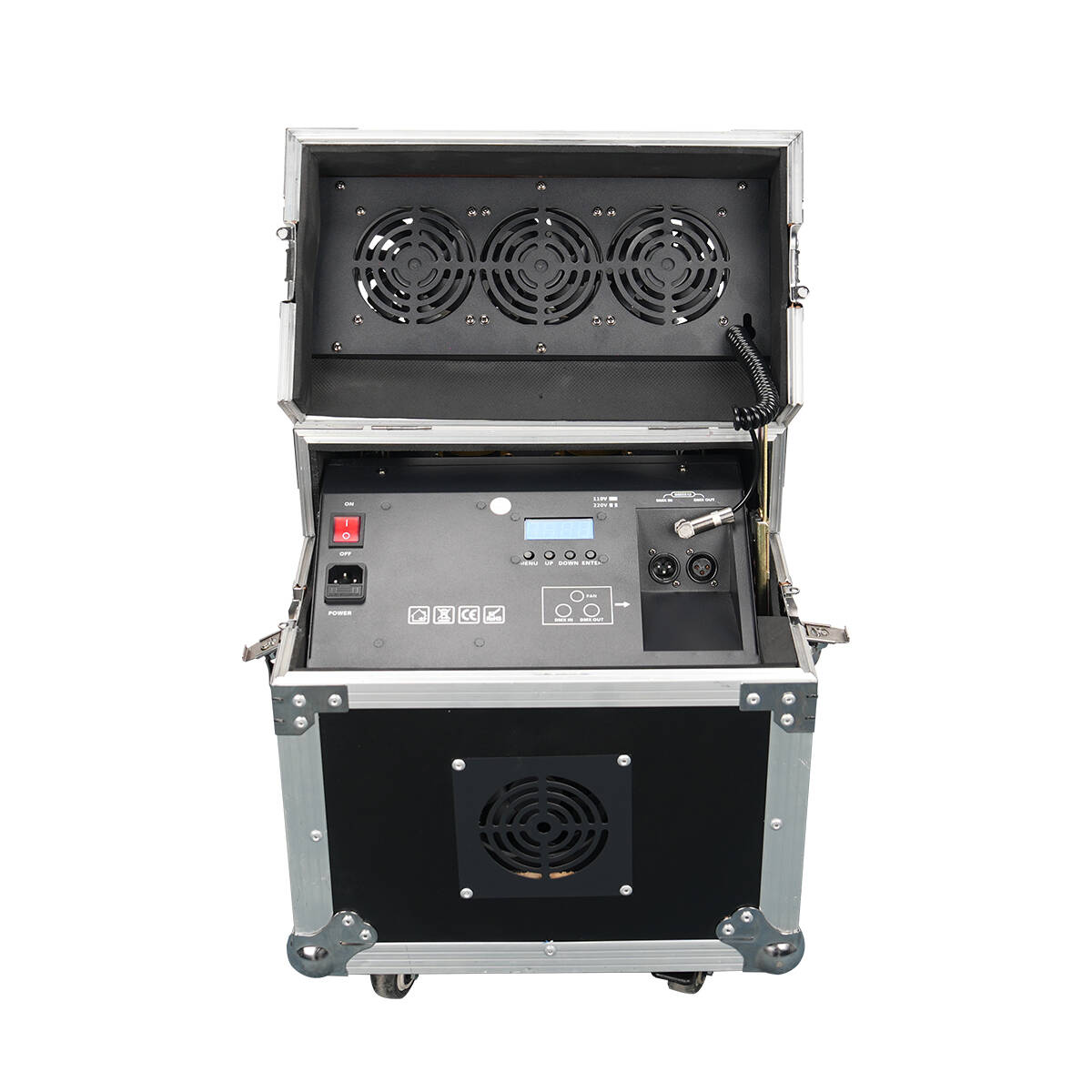

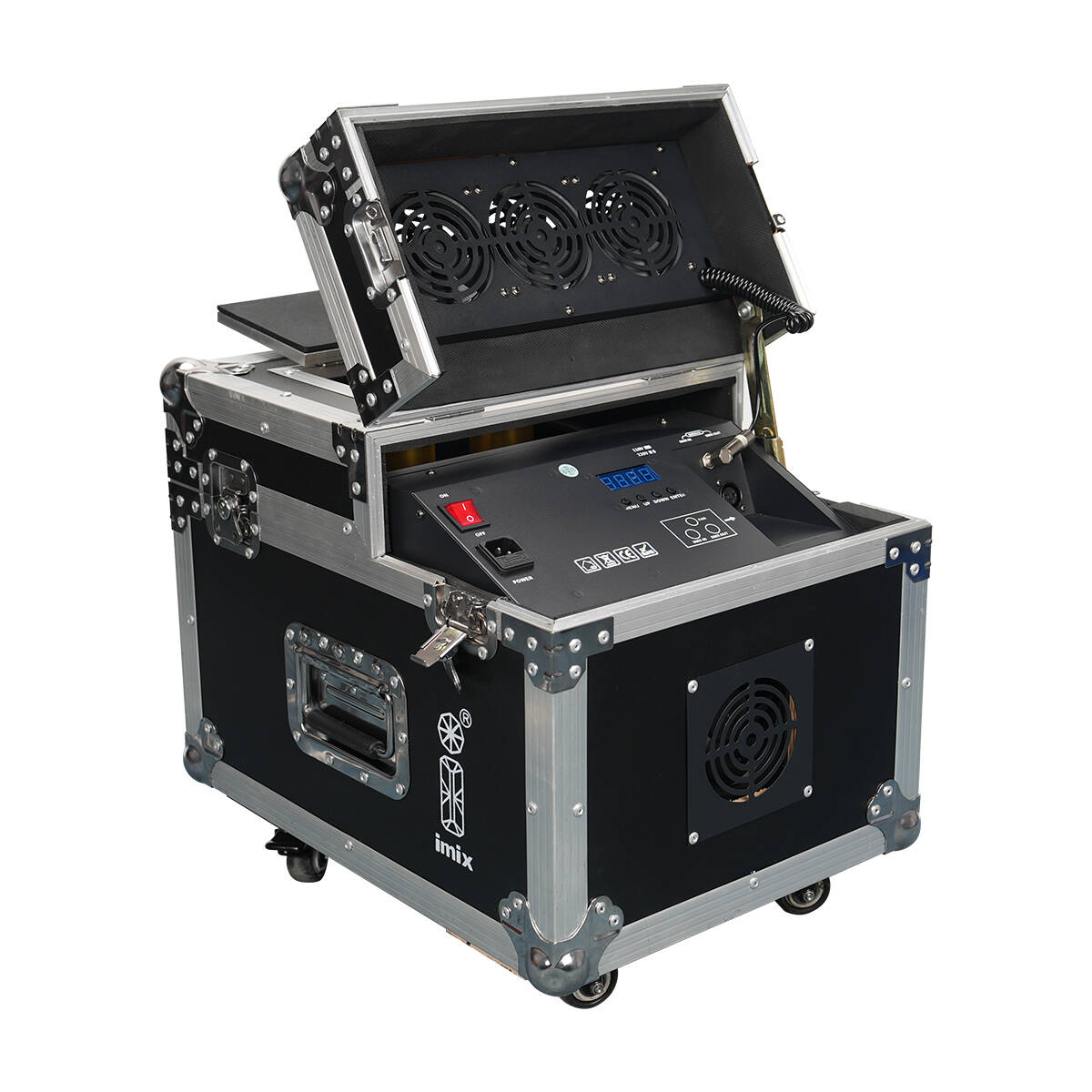

2. Control Panel
| Button | Function |
|---|---|
| Menu Key | Navigate settings (DMX address, airflow, timer) |
| Start/Stop | Toggle haze output (P ON/P OFF) |
| +/- Keys | Adjust airflow (F0=off, F100=max) or timer (D1-D200=run time in sec) |
| Config Key | Confirm settings |
3. DMX512 Control (2 Channels)
| Channel | Value Range | Function |
|---|---|---|
| 1 | 0-64: Off, 65-255: On | Activates compression pump |
| 2 | 1-255 | Adjusts air volume (1=min, 255=max) |
Safety & Maintenance
⚠ Avoid Dry Burning – Always ensure fluid is present to prevent damage.
⚠ Ventilation – Do not use in enclosed, high-temperature, or humid spaces.
⚠ Storage – Replace the gold lid with the black cover after use to protect the outlet.
⚠ Fluid Quality – Use only recommended haze fluids to avoid machine clogging.
